DC-D4000 Series | Speaker & Mic connection

Environment:

• DC-D4218WRA
• AOP-SP-CF/AOP-SP-CS (speakerphone) 3rd party
• Audio Alarm setup

Procedure:

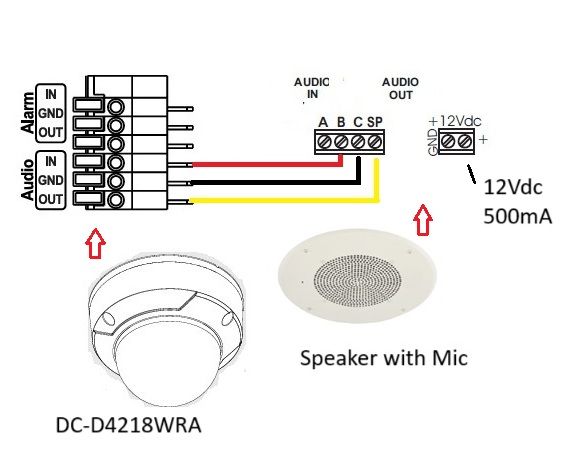

1. Make all connections to the camera. (Mic/Speaker)
   Note: Refer to the AOP-SP-Cx manufacturer's manual for installation.

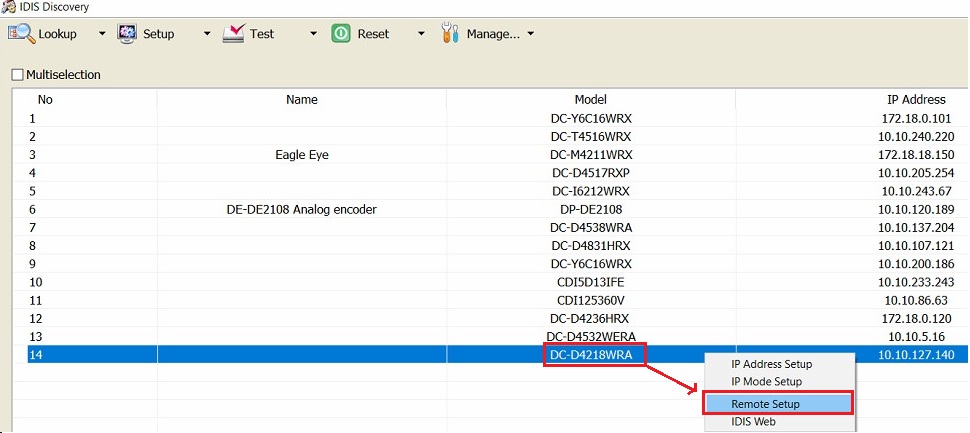

2. Log in to the camera setup menu by using the "Remote setup" in the IDIS Discovery software
   Note: You will be prompted to create a password if none have been created.

3. In the camera setup menu, click on "Event Action."

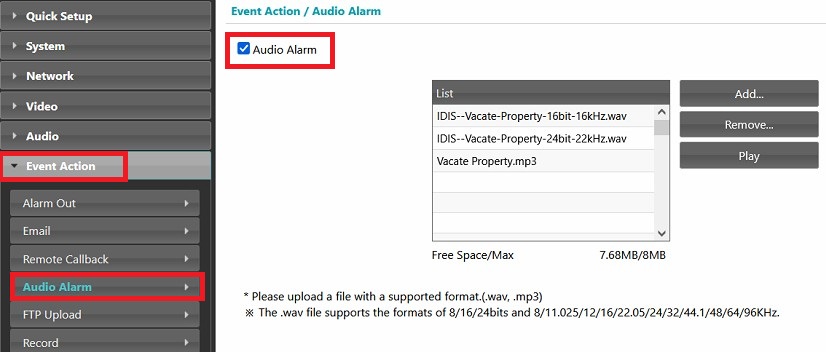

4. Click the "Audio Alarm" menu and enable "Audio Alarm" by putting a check mark.

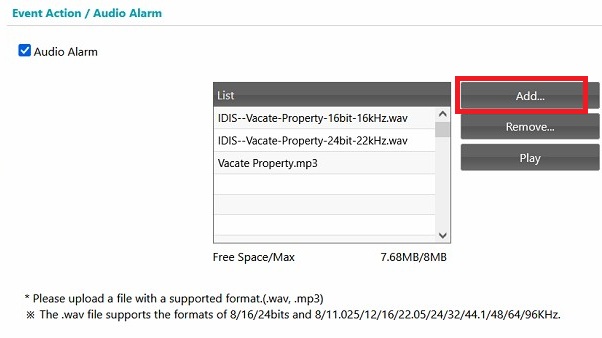

5. Click the "Add" and select your wav or mp3 file, then click on "Open" to import into the camera.

6. In the camera menu, choose between Event and IDLA, which type of Event action that will trigger the audio alarm.

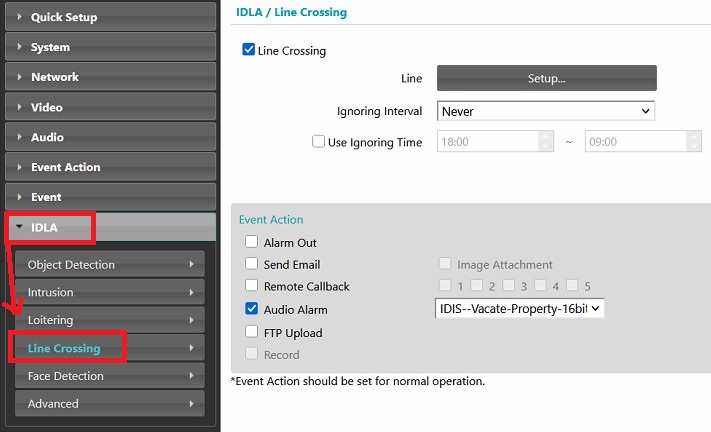

7. For example, we will set up IDLA>Line crossing" to trigger an audio alarm.

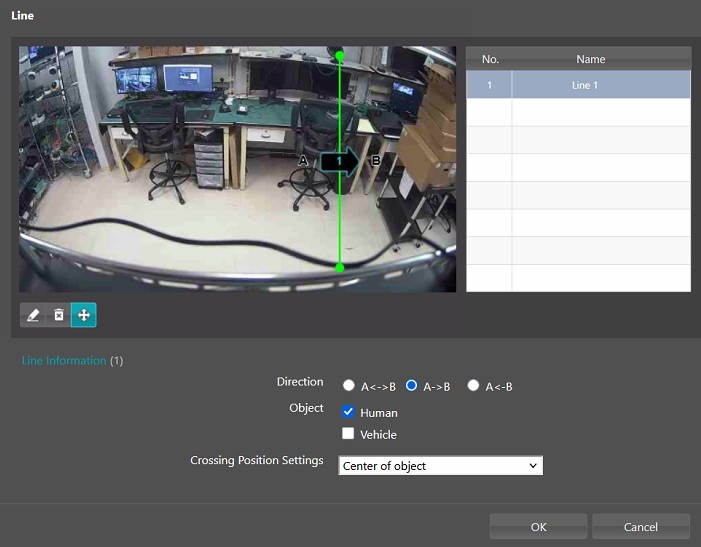

8. Click on "Setup" to create "Line 1" (Direction/Object/Crossing position settings). Press "OK" to save.

9. The camera setup and configuration should be complete. To test the audio alarm, have somebody walk across the line.

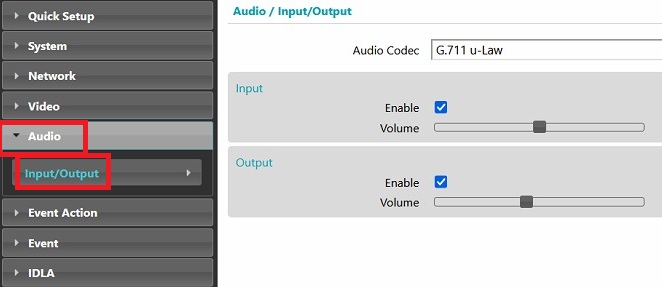

   Note: To increase or decrease volume, you can make adjustments in the camera setup page.
