IDIS DR-Series | How to edit the layout display menu

Environment:

• DR-Series

Purpose:

• To specify cameras that only need to be displayed or viewed.

Procedure:

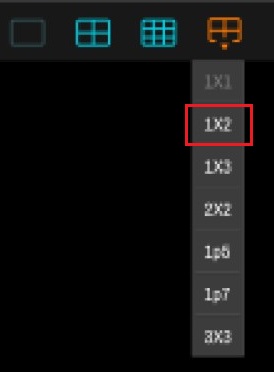

1. Select the Layout icon located on the upper part of the screen.

2. Select the screen that you will edit.
   Layout Option: 1x2, corridor format(1x3), 2x2,1+5, 1+7, 3x3, 1+12, 4x4, 5x5, or 6x6.

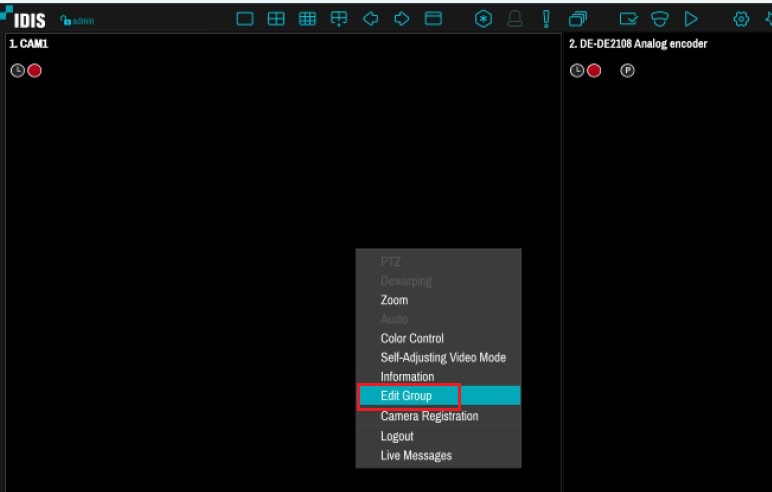

3. Right-click on the screen and select "Edit Group."

4. A yellow border is drawn around the page. When you're in the edit group mode.

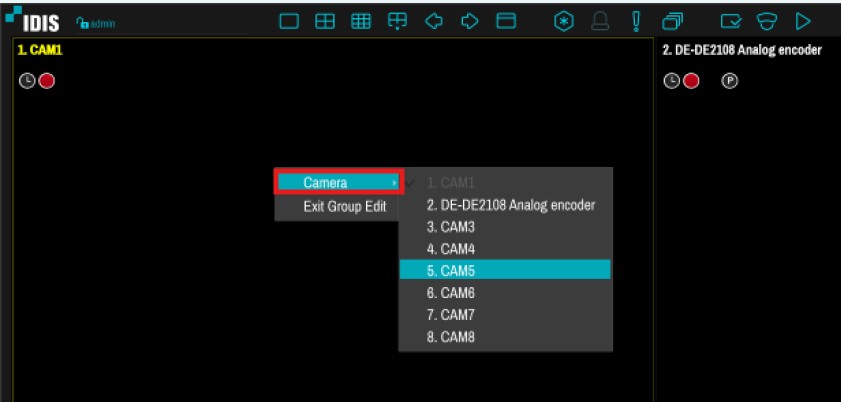

5. Right-click on the screen and select "Camera," then select a camera from the list to display.

6. Repeat step 4 to edit any additional window panels.
7. Right-click on the screen to select "Exit Group Edit."

8. Done.
