DR-Series | How to rearrange cameras on the live monitor display..

Environment:

• DR-1000 Series
• DR-2000 Series
• DR-3000 Series
• DR-6000 Series
• DR-8000 Series
• Located at the recorder.

Purpose:

• Cameras were added to the recorder in the wrong order.
• Want the camera to be displayed in a different order on the live monitor display.

Procedure:

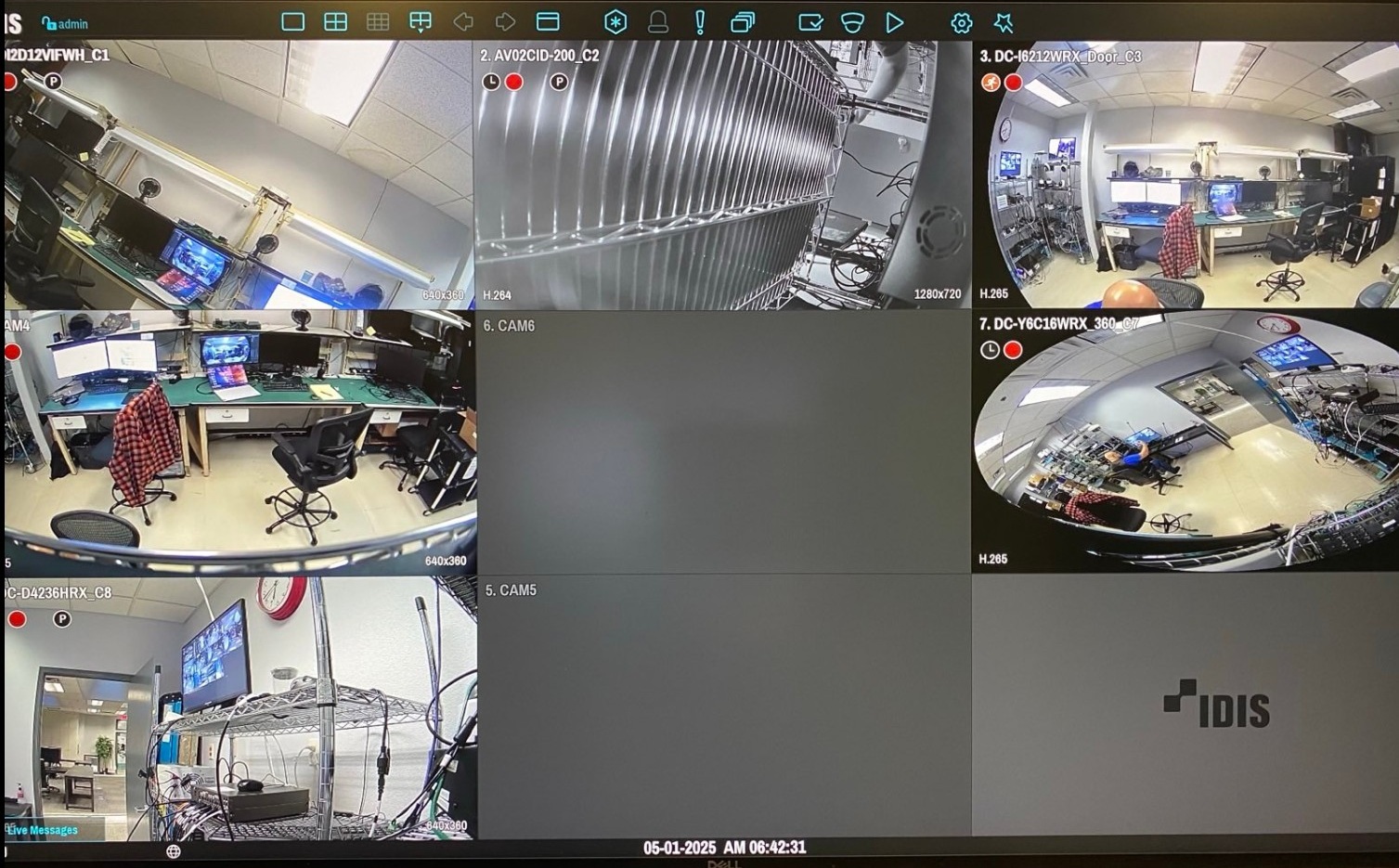

1. Looking at the live monitor display from the recorder. Locate the camera you want to move to a different window panel. (Image below)

2. For example, move the Camera 8 window to the Camera 5 window.
3. You can start by " Right-Clicking" on the Live video display and selecting "Camera Registration" from the menu list.

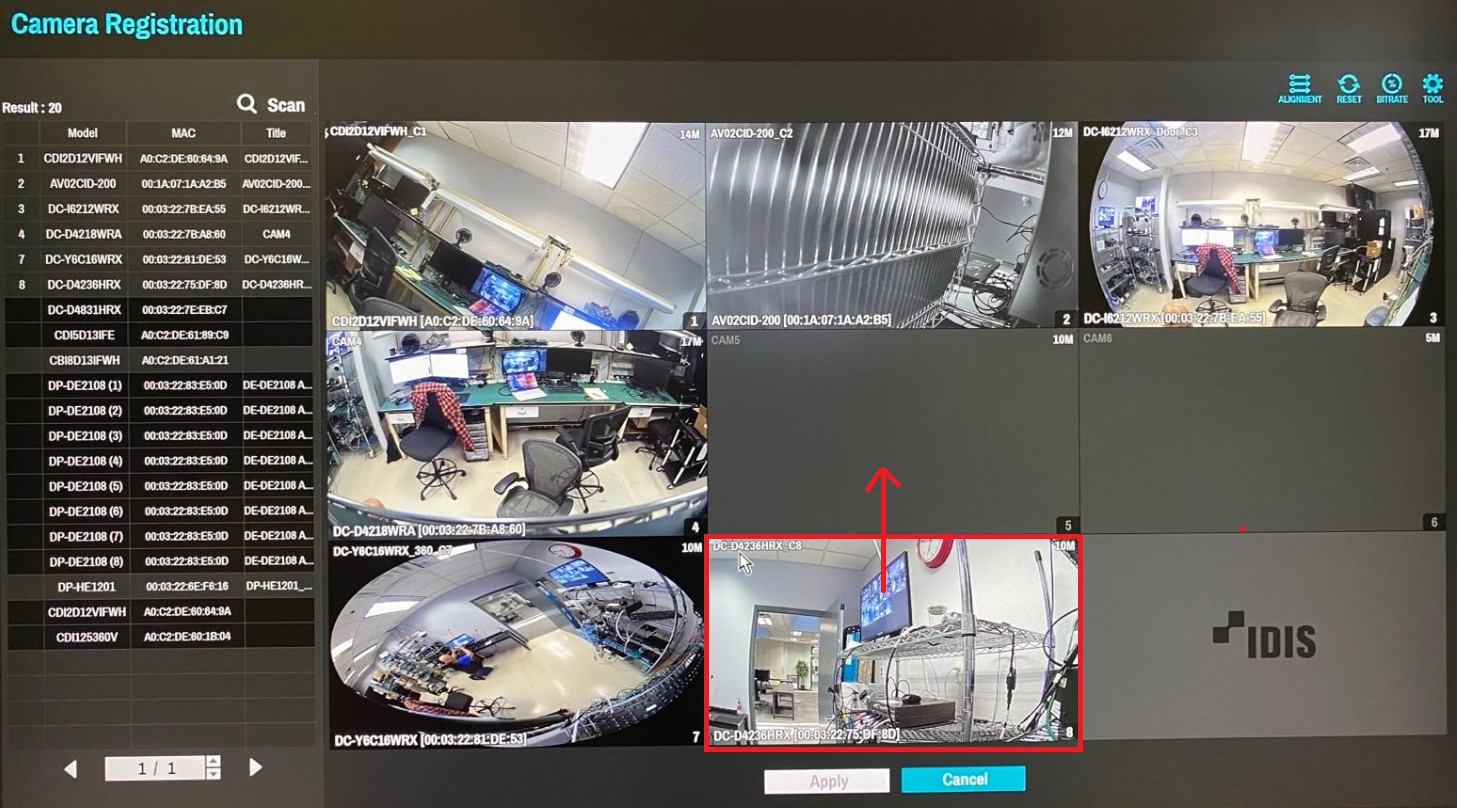

4. Locate Camera 8 window and "Left click" and "Drag and hold" to Camera window 5. (image below)

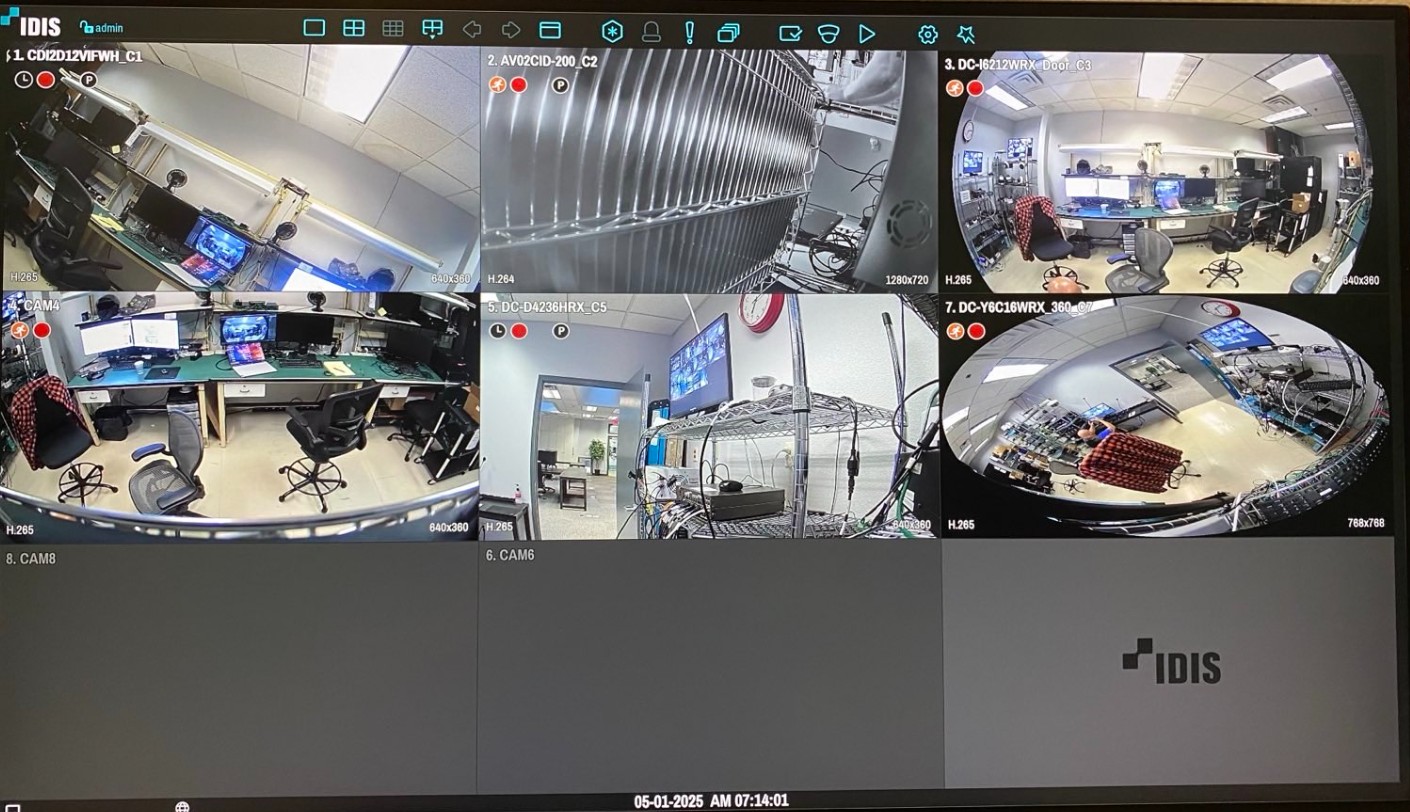

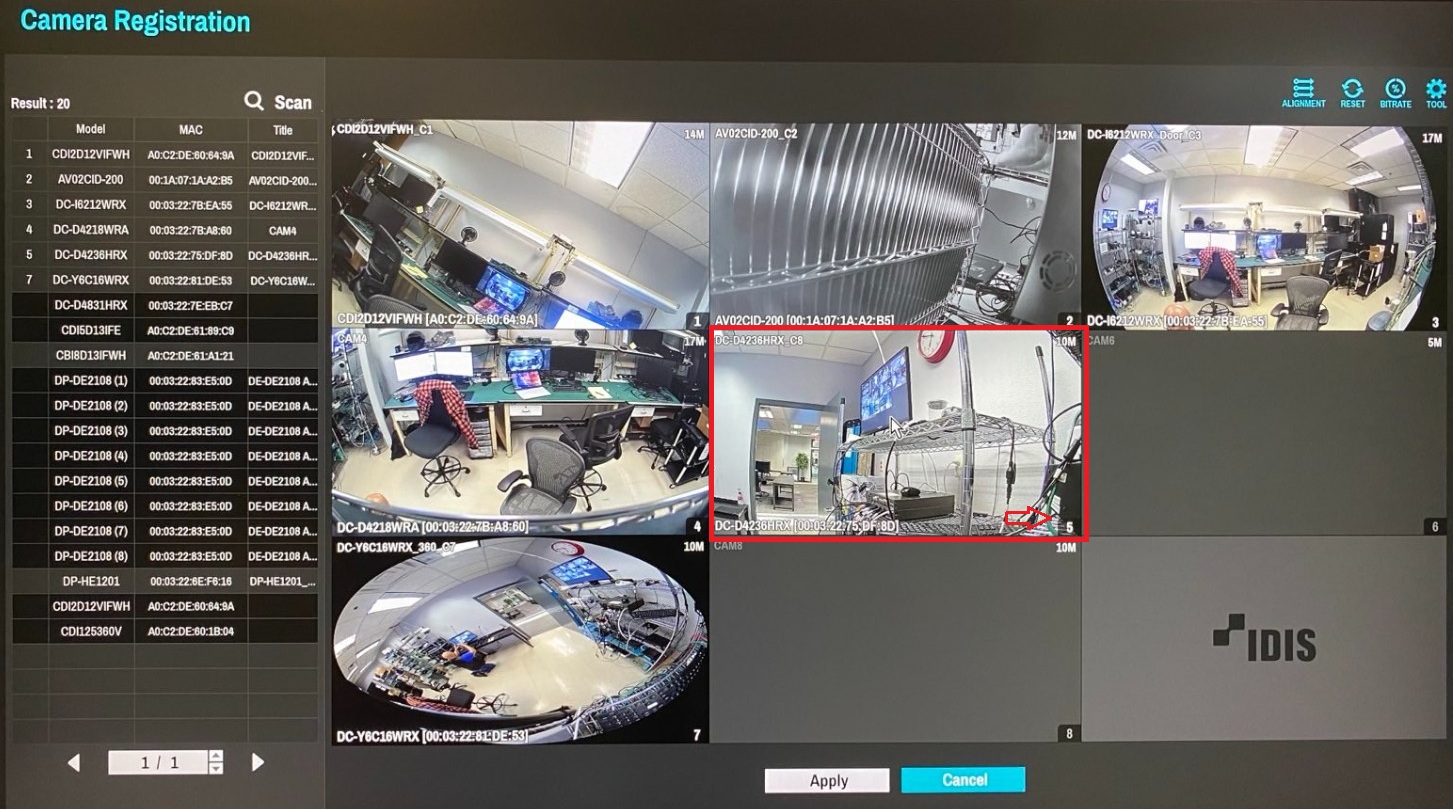

5. Camera 8 will now be Camera 5 in the live monitor display. (image below)

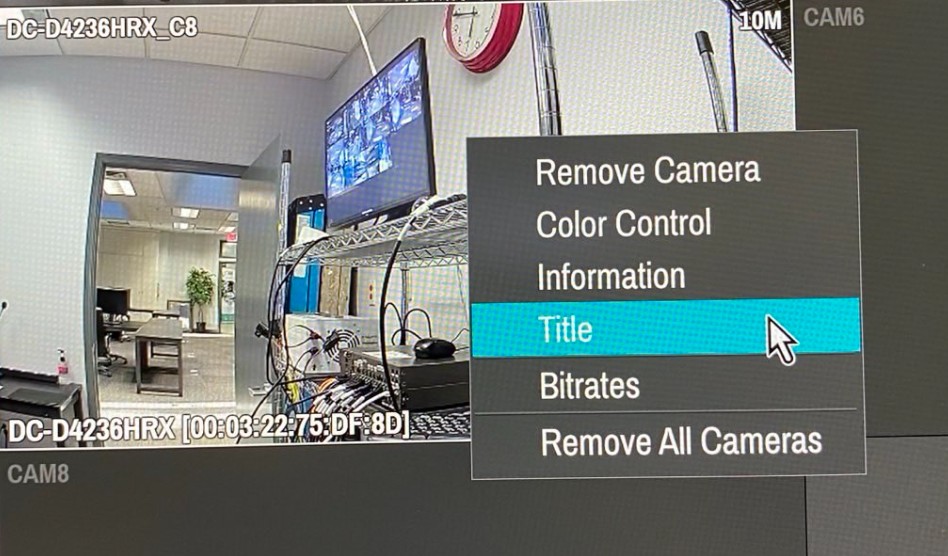

6. The camera can be named by right-clicking on it and selecting "Title." (image below)


7. Click "Ok" to save the "Title"
8. Click "Apply" to save changes before exiting the "Camera Registration" menu.

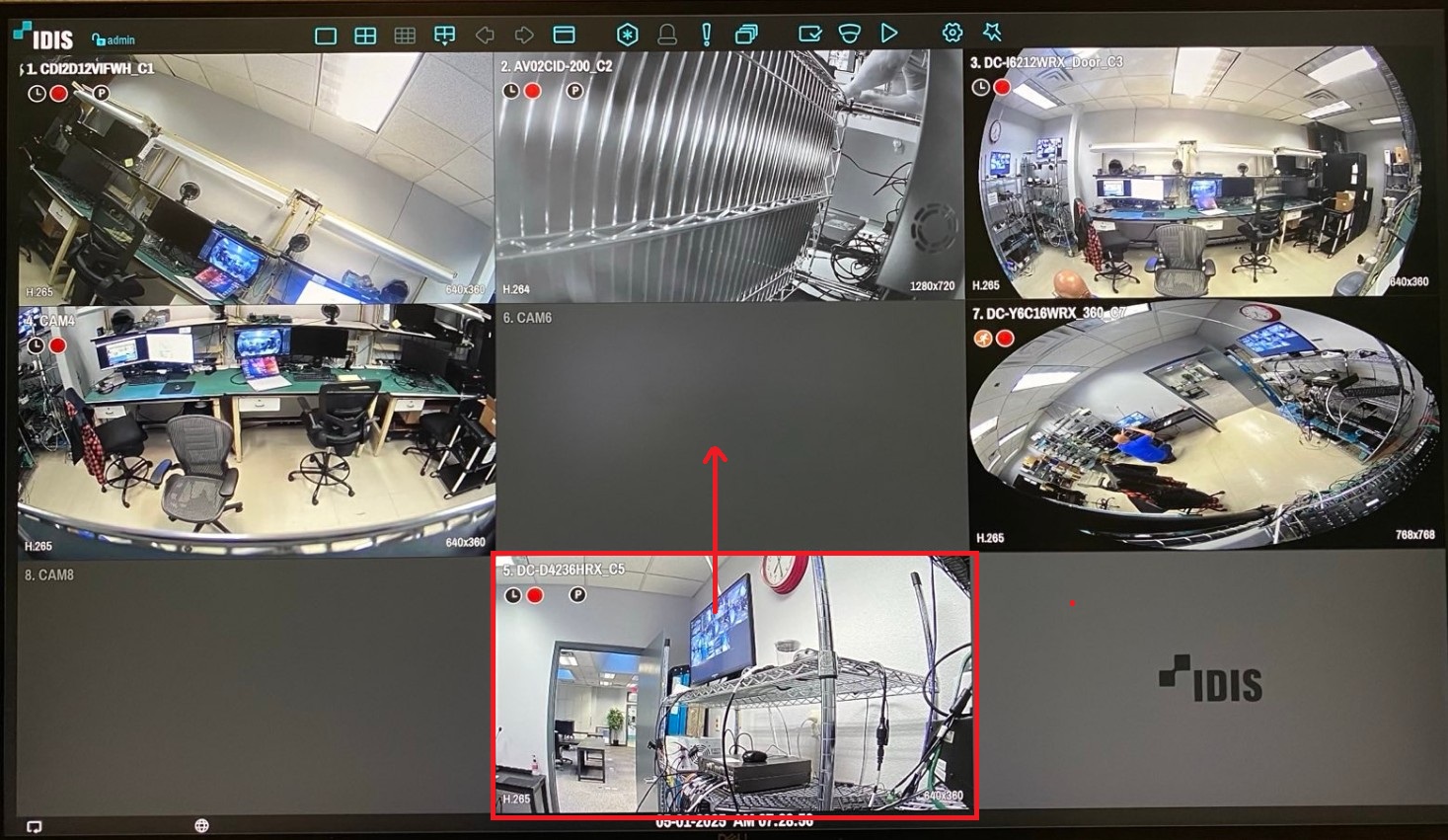

9. In the live monitor display, left-click, drag, and hold to the camera window. (image below)

10. Done.
