ConteraIP | How to upload snapshot to FTP

Environment:

• AV0xCLD-xxx
• AV0xCID-xxx

Procedure:

1. Log in to your camera WEBUI

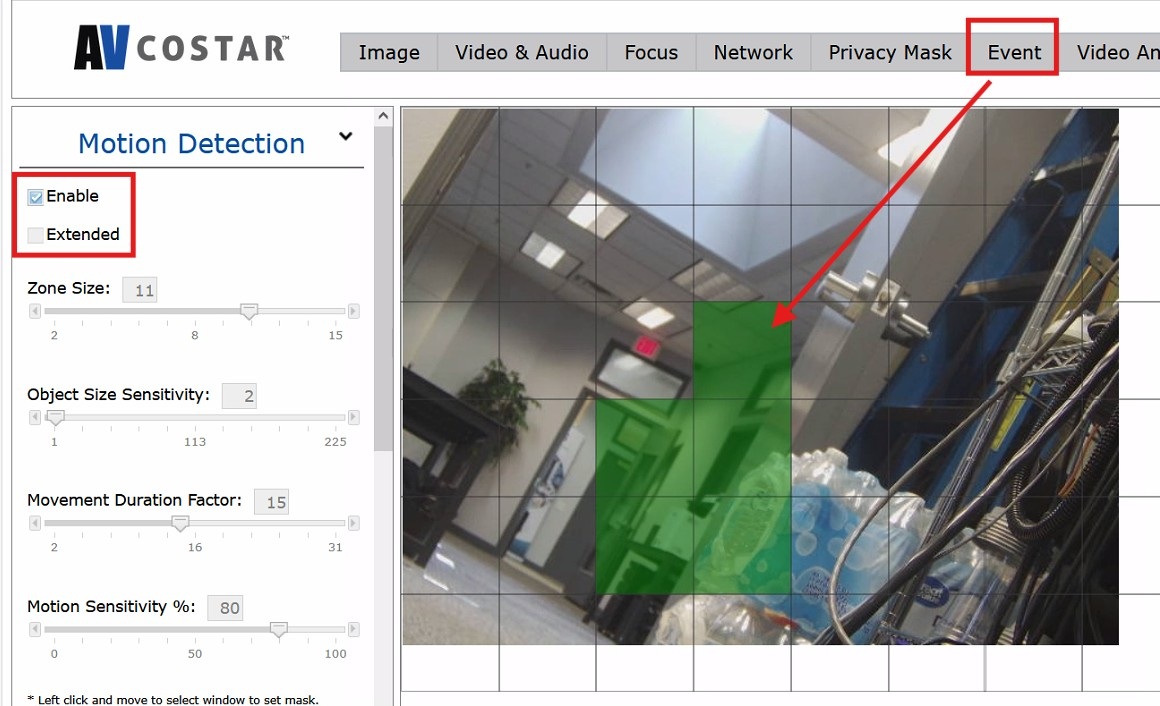

2. Click on the "Event" menu.
3. Enable Motion and confirm the green blocks are triggered when motion is detected.

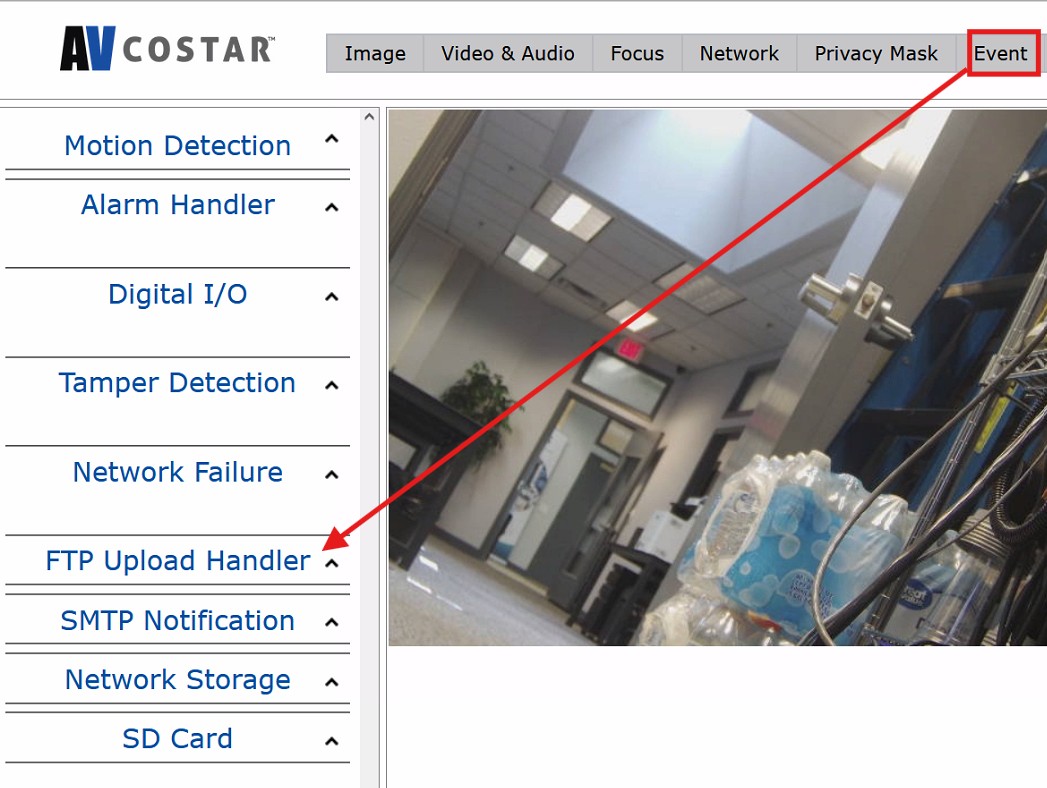

4. In the Event select "FTP Upload Handler."

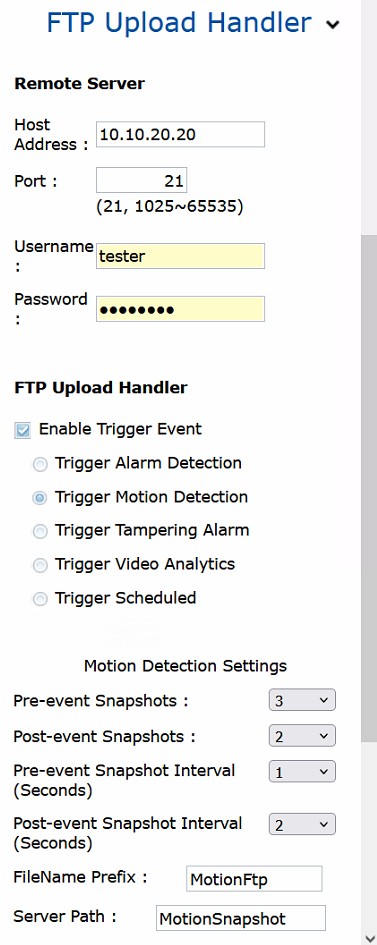

5. Enter your "FTP server IP address" and "password".
   Note: Confirm that the port in use is not blocked.

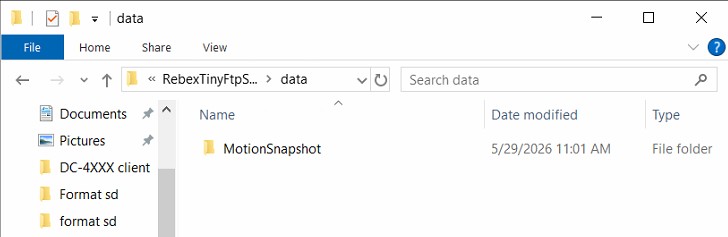

6. Once motion is detected, a MotionSnapshot folder will be created with images.

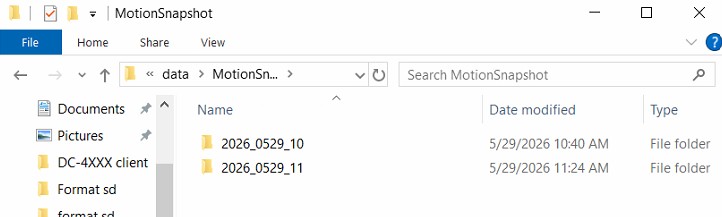

7. Click on the time stamp folder needed reviewing

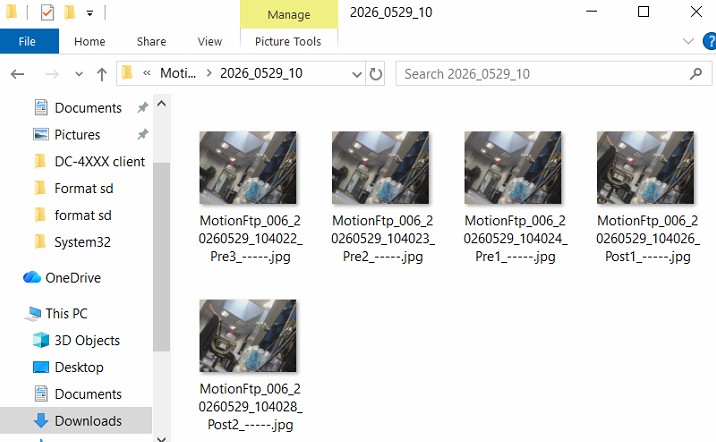

8. Select any of the images needed.
