3212-8000 | Set Motion recording

Environment:

• 3212-8000 (v4.5.0832.0000.003.0.1.39.0.R01_20210414) or higher
• 3212-2000 (v3.6.1304.1004.75.0.2.0.3) or higher

Procedure:

1. Log into the 3212-8000 web page (IE recommended)
2. Click on the Setting

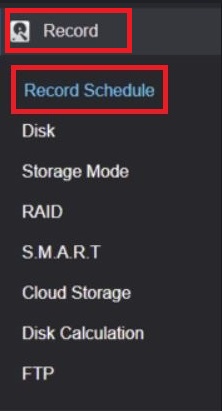

3. Click on the Record>Record Schedule Menu

4. Select the camera that will be set to motion recording and Select Motion mode to the right.
5. Apply Changes.

   Note: Left-click the Square to remove or to add the motion green block in the Days and hours.
              Left-click and drag the point to enable more blocks at a time.

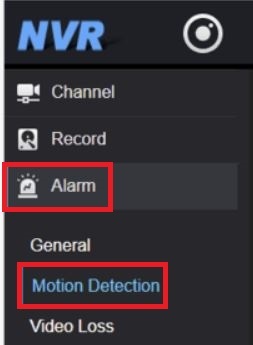

6. Click Alarm>

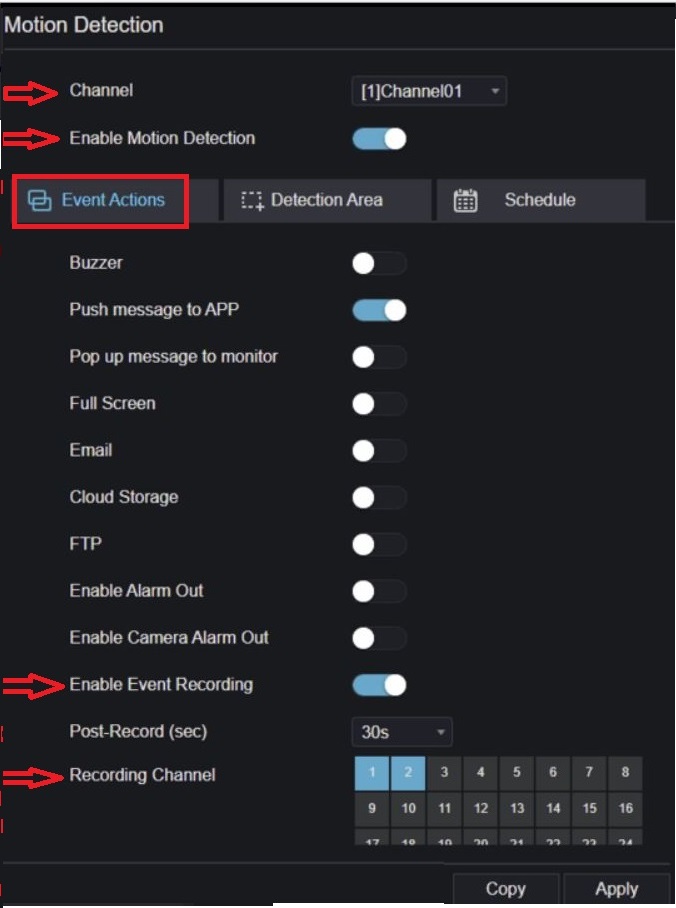

7. Select Channel and Enable Motion Detection and Event Actions.

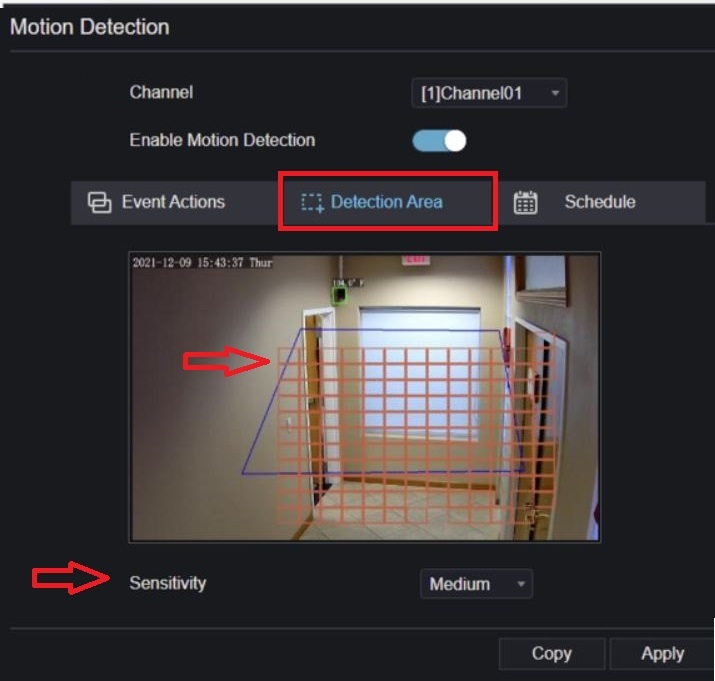

8. Select Detection Area menu
9. Left-click to add a square to the area you want the motion to be detected in the camera view.

10. Select Schedule menu
11. Confirm the day and hour is scheduled for motion.

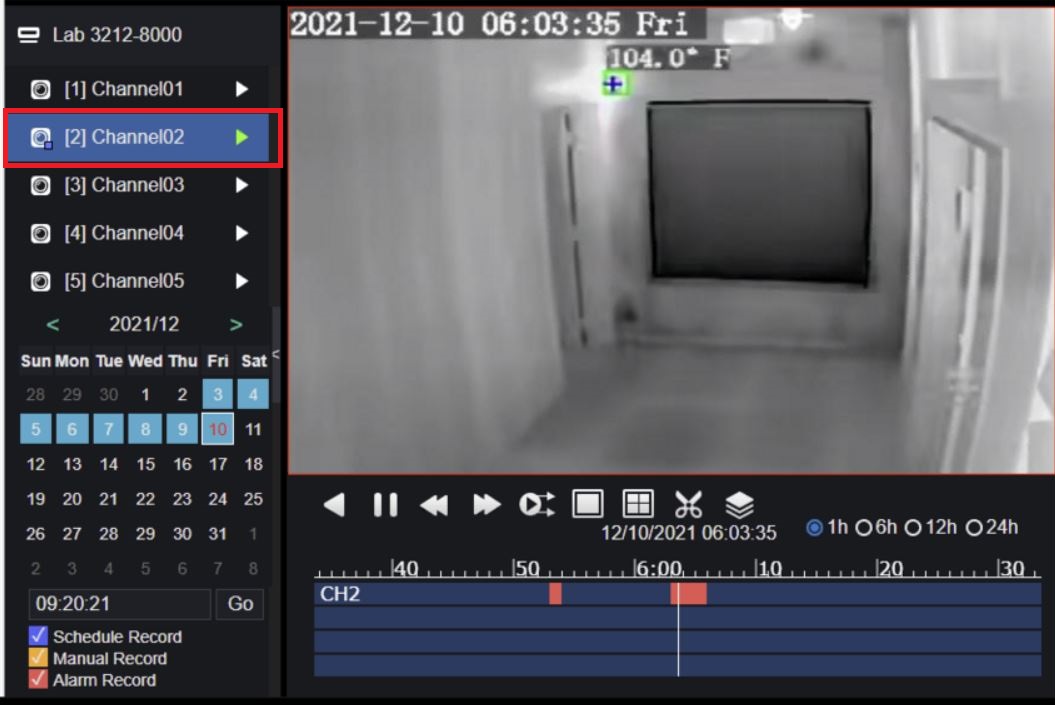

12. Confirm recording in the playback menu.

13. Select the camera to view motion recording
