Rise 2: 4267 series 18 MS and RS-422 to WinMPc

Issue: Power/Pigtail Options

Environment:

• 4267-XXXX-02
• USB-to-RS232 (ES-U-1001-R10 (100)

Procedure:

1. Diagram 1 shows the type of PTZ and connections that are available. CAT5e and I/O cable /18 pin MS Connector.

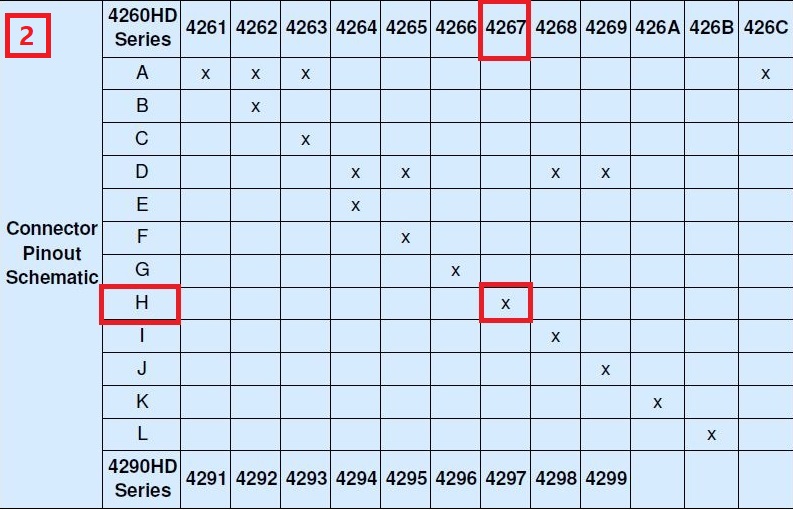

2. Diagram 2 shows the Camera Connector Configuration table.

3. Diagram 3 shows the pinout for the 18 Pin MS Connector to RS-232

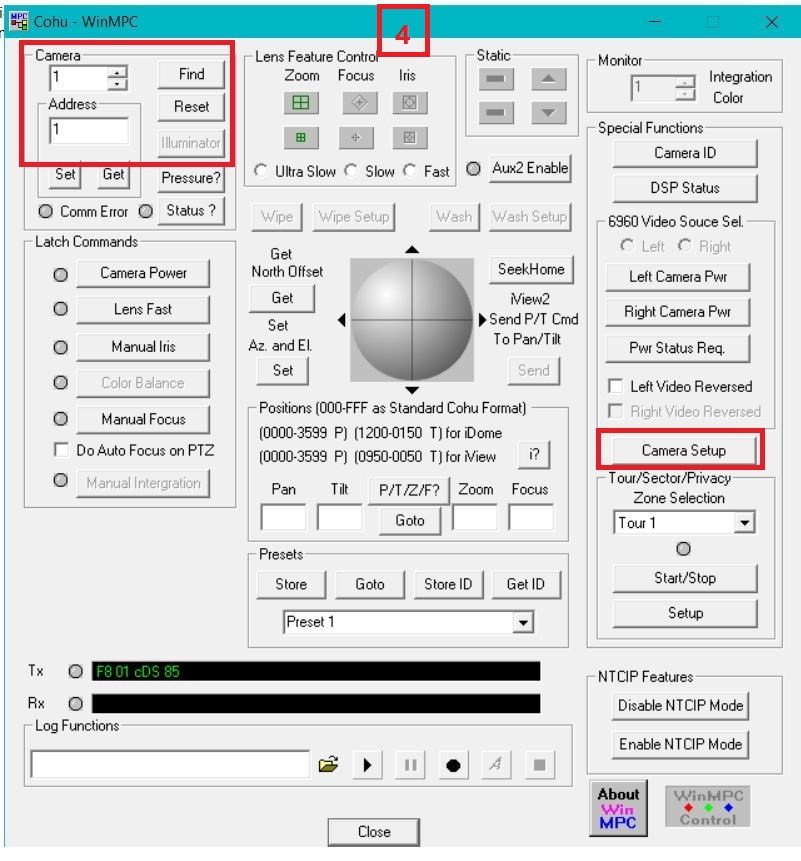

   Open WinMPC_V4918.exe and select the "Camera setup" shown in diagram 4

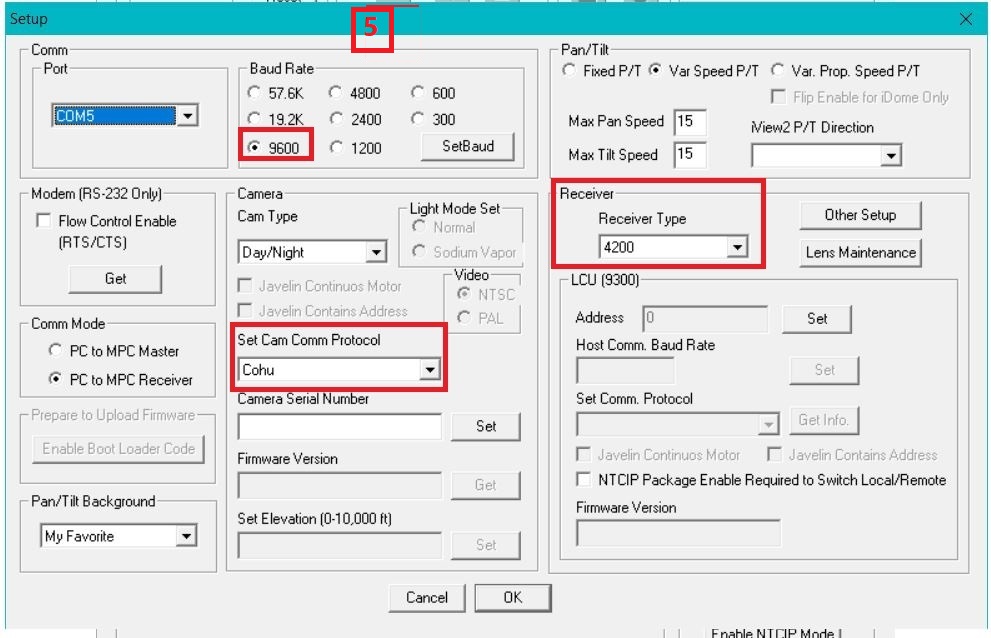

4. Confirm com port on your pc matches the setting in WinMPC
5. Select Receiver Type "4200"
6. Select  " Cohu" for Cam Comm Protocal
7. Select Baud 9600 (or to what's needed) Press SetBaud.

8. Press OK
9. As shown in diagram 4 press "Find" for the camera.
10. Test control with arrow buttons shown in diagram 4
11. Note:  Part number 4267-XXXX-02 the 7 represents the type of power that will be applied to the camera and pigtail connector used. (120Vac Power) 18 pin MS Connector, H-Series Pinout
12. For wiring, distance specifications refer to the 4260HD installation Manual.
