Environment:
- Rise 1
- Rise 2
- Rise 3
Purpose:

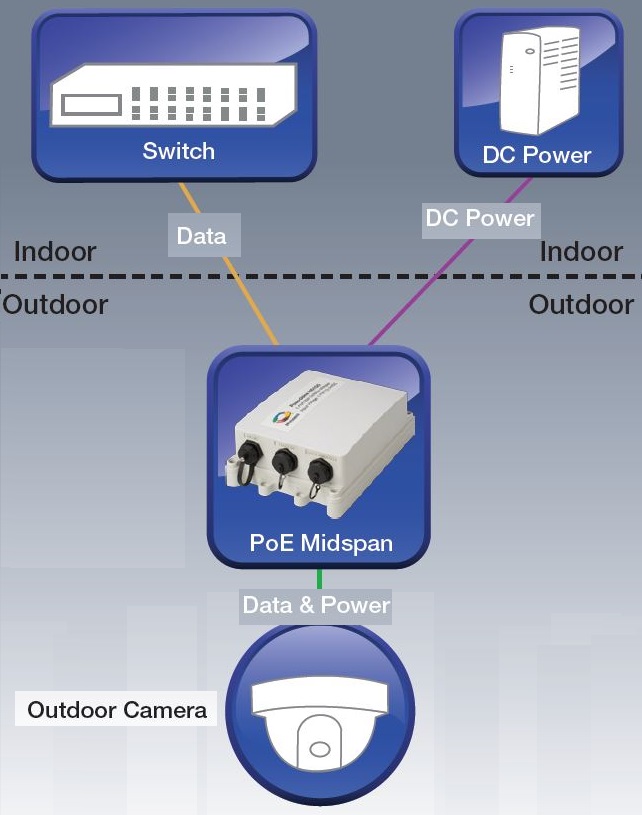

Power supply input VDC to POE+
No. of Ports 1
Pass-Through Data Rates 10/100/1000 Mbps
Power over Ethernet Pin Assignment and Polarity:
Output 4/5 (+), 7/8 (–), 1/2(–), 3/6(+)
Output Power Voltage: 55Vdc
User Port Power: 60W guaranteed
Input Power DC Input Voltage: 10 to 36 VDC
Requirements DC Input Current: 2.0A
Dimensions 214 mm x 150 mm x 70 mm
8.42 in. x 5.90 in. x 2.75 in
Weight 1.65 lbs (750g)
Indicators No LED indicators
Connectors Shielded rugged RJ-45 (with gasket)
Environmental Operating Ambient Temperature:
Conditions -40º to 122ºF (-40 to 50ºC) for 60W
-40º to 131ºF (-40 to 55ºC) for 30W
Operating Humidity:
Maximum 95%, Non-condensing
Storage Temperature:
–40º to 185ºF (–40º to 85ºC)
Storage Humidity:
Maximum 95%, Non-condensing
Operating Altitude:
Up to 6,560 ft. (2000 m)
Weather Rating:
IP66, NEMA 4X
Reliability MTBF: 150,000 hrs. @25ºC
Thermal Rating 40 BTU/Hr
Warranty 1-year
Regulatory Compliance IEEE 802.3af (PoE, PoH Type1)
IEEE 802.3at (PoE+ including 2-event,
PoH Type 2), RoHS Compliant,
WEEE Compliant, CE
Electromagnetic FCC Part 15, Class B
Emission & Immunity EN 55022 Class B
EN 55024, EN61000-4-5 Class 5 (6kV CM)
VCCI
Surge Protection Meets Surge Protection as specified in
GR-1089-CORE Issue 4
ITU-T K.20 6 kV on AC lines
Safety Approvals UL60950-1 & UL60950-22
GS Mark
Other Standards and Approvals Dust and water intrusion: EN60529,
Level1P66; NEMA 250, Level 4X
ASTM B-117 Corrosion Resistance
