Helios 3960SD/HD Series | Model numbers

Environment:

• SD3x Series
• HD3x Series

SD MODEL NUMBERS:
SD34-1000: H.264 SDTV 35x Cam, 24VAC, MS Conn
SD34-2000: H.264 SDTV 35x Cam, Wiper, 24VAC, MS Conn
SD35-1000: H.264 SDTV 35x Cam, 120VAC Power, MS Conn
SD35-2000: H.264 SDTV 35x Cam, Wiper, 120VAC Power, MS Conn
SD36-1000: H.264 SDTV 35x Cam, 120VAC, MS Conn, PT Htr
SD36-2000: H.264 SDTV 35x Cam, Wiper, 120VAC, MS Conn, PT Htr
SD37-1000: H.264 SDTV 35x Cam, 24VAC, AMP Conn
SD37-2000: H.264 SDTV 35x Cam, Wiper, 24VAC, AMP Conn
SD38-1000: H.264 SDTV 35x Cam, 120VAC, AMP Conn
SD38-2000: H.264 SDTV 35x Cam, Wiper, 120VAC, AMP Conn
SD39-1000: H.264 SDTV 35x Cam, 120VAC, AMP Conn, PT Htr
SD39-2000: H.264 SDTV 35x Cam, Wiper, 120VAC, AMP Conn, PT Htr

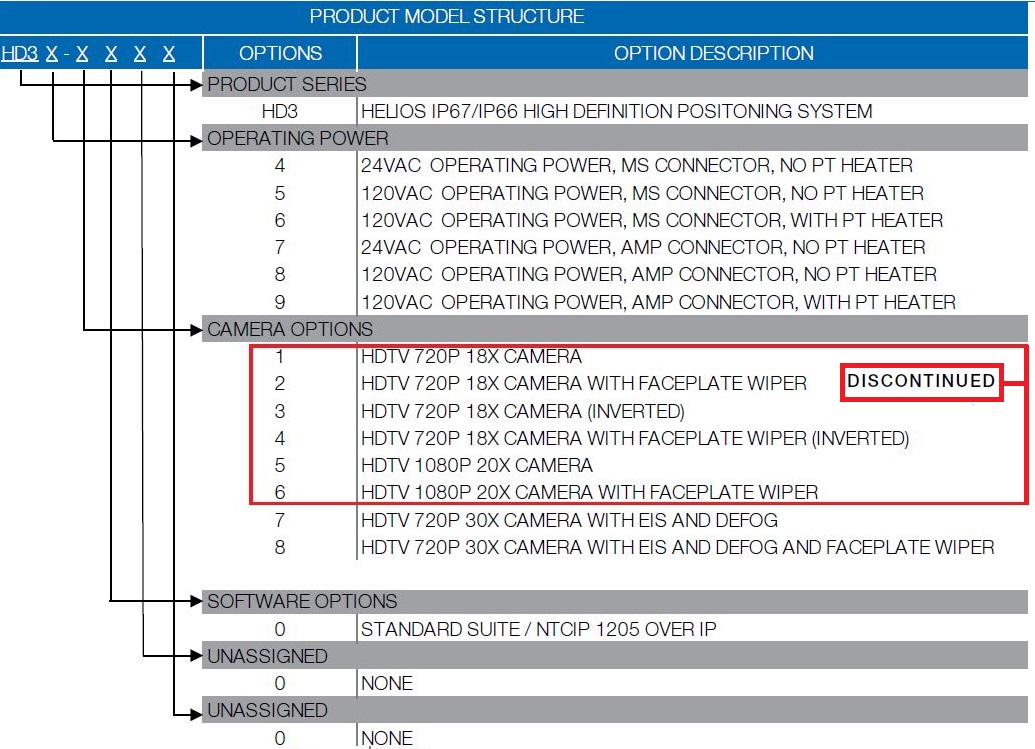

HD MODEL NUMBERS:

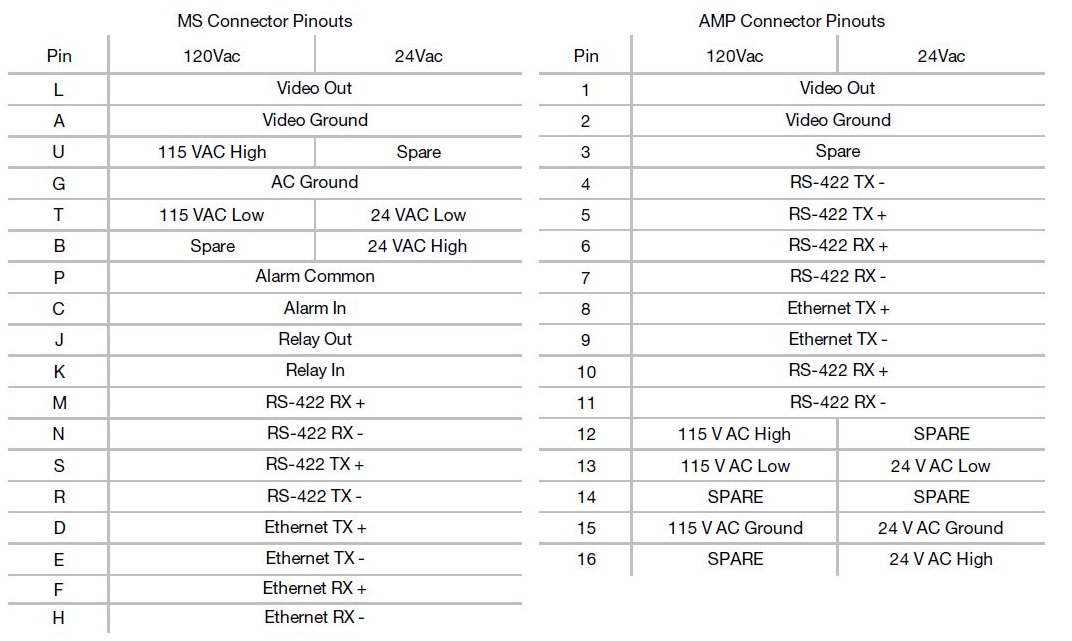

SD3x | HD3x | Connector Pinout Options:

Cable:

• CA252 Series, 120Vac, MS connector
• CA255 Series, 24Vac, MS connector
• CA272 Series, 120Vac, AMP connector
