3432-xxxx | How to view and zoom with ONVIF Protocol

Environment:

• OCTIMA
• 3432-xxxx
• ODM (ONVIF Device manager) Click here to download software

Purpose:

With the ODM software, you can be to zoom in and out as you view the live video.

Procedure:

1. Open ODM software
2. Click on the "Add" button located in the lower-left corner.

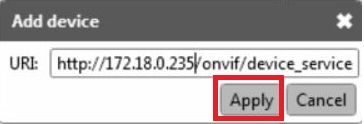

3. Backspace only the IP address, then Enter the IP address of your camera, Press "Apply"

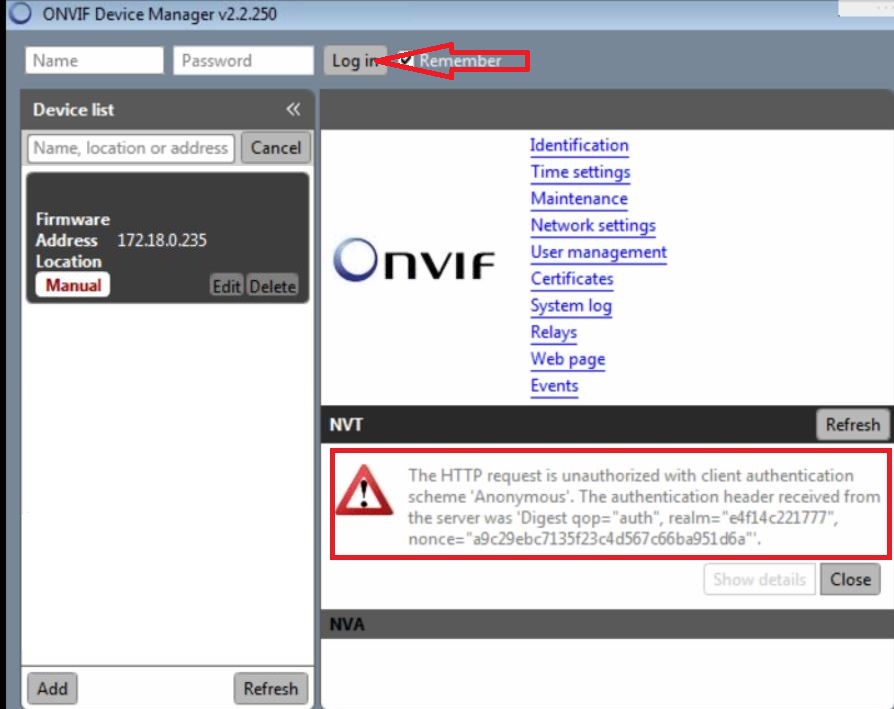

4. You will get an " authentication" error which will go away once the name and password are entered in the upper left corner.  (Default: admin | admin) If change, enter the correct user and password.

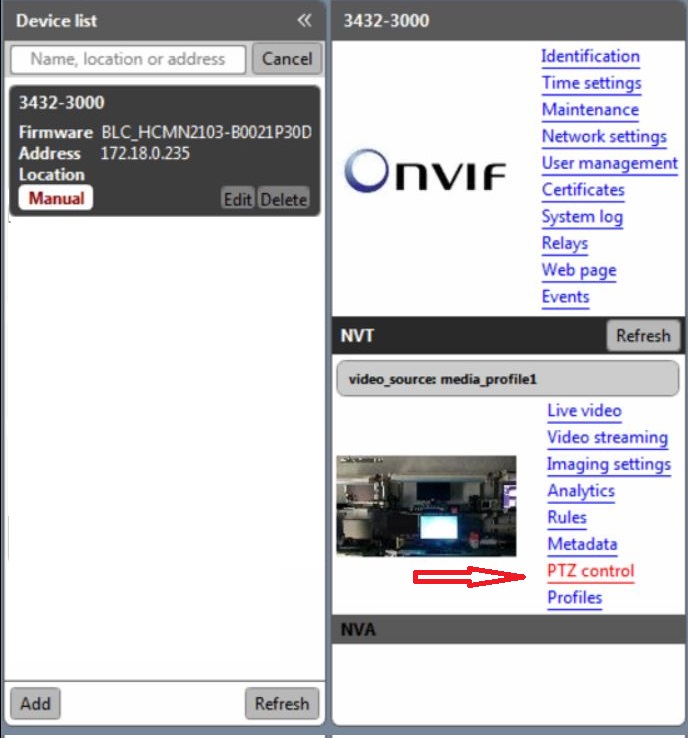

5. Click on the "PTZ control" from the Video_source: media_profile1 menu

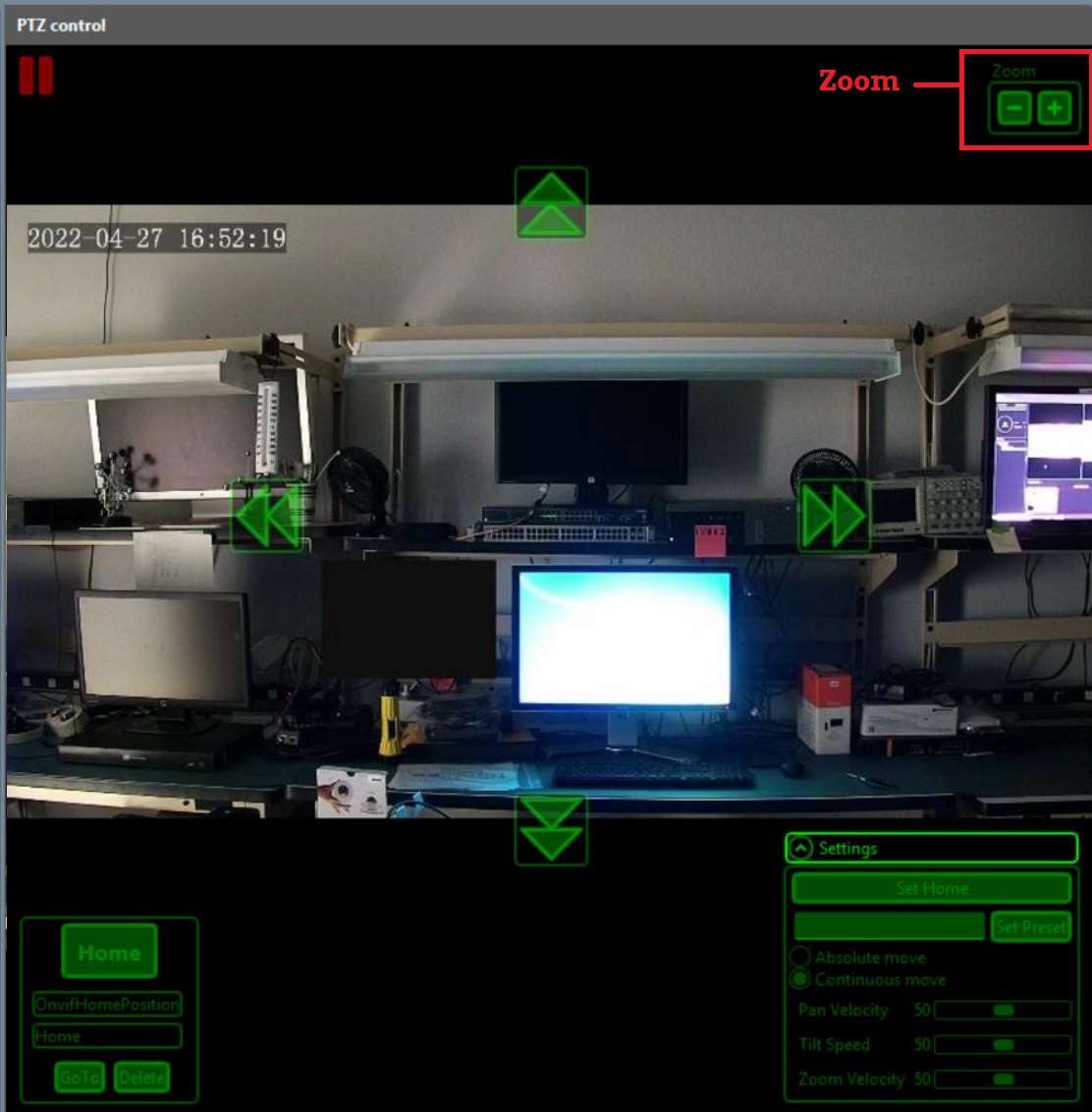

6. In the ODM software, you will see live video and zoom (-) and (+)
