Issue:
Power and Data connections
Environment:
- 4269-xxxx
- 4269-xxxx-02
- 4269-xxxx-03
Procedure:
-

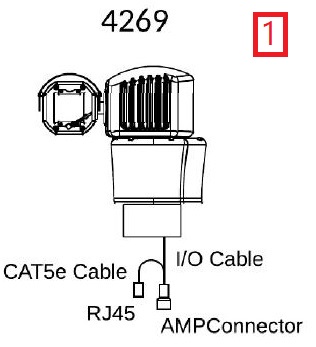

Diagram 1 shows the type of PTZ and connections that are available. CAT5e and I/O cable /AMP Connector.
-

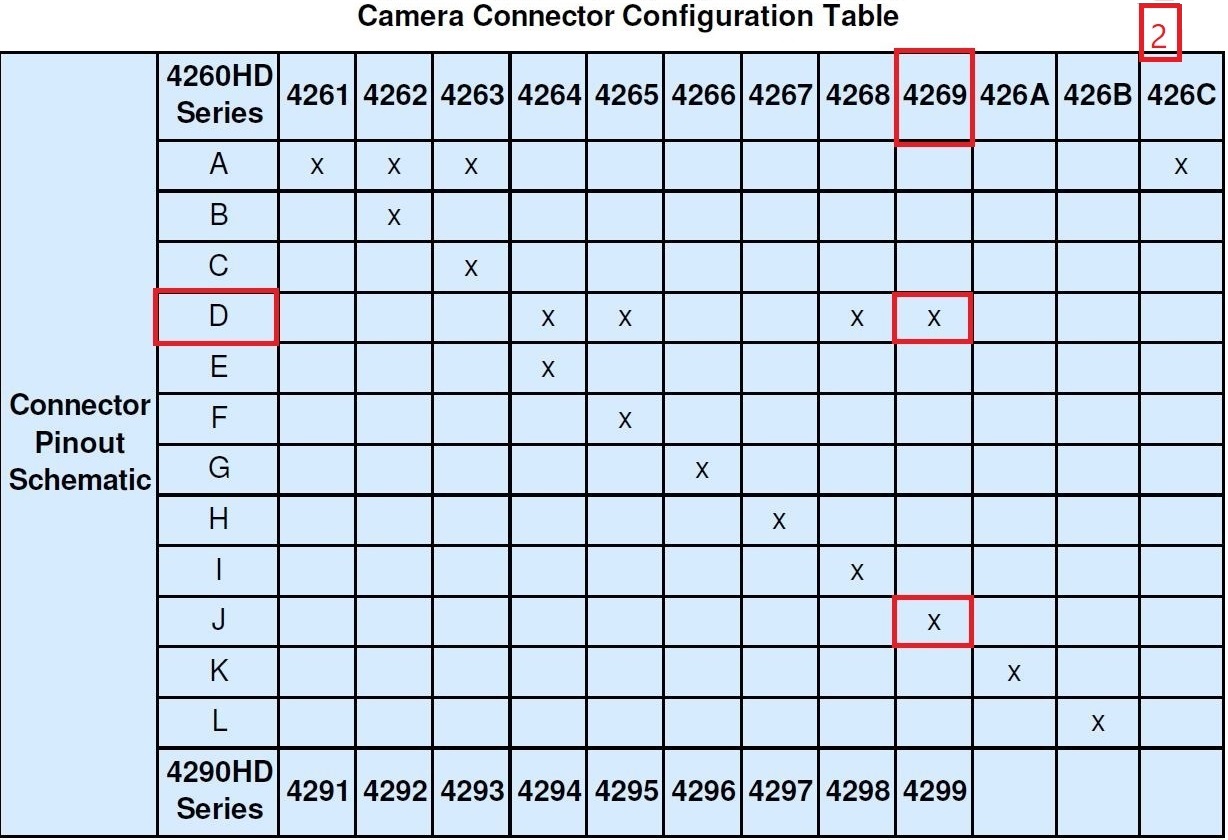

Diagram 2 shows the Camera Connector Configuration table.
-

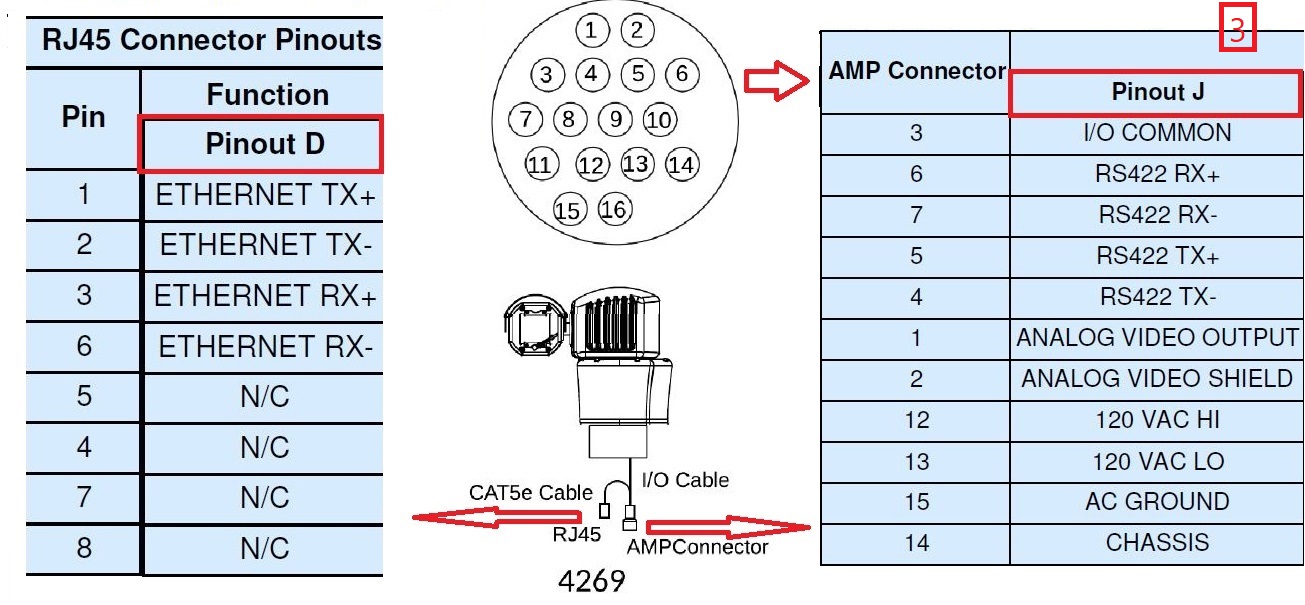

Diagram 3 shows the pinout for the RJ45 Ethernet and AMP Connector
- Note: Part number 4269-XXXX the 9 represents the type of power that will be applied to the camera.120Vac Power, AMP Connector Pigtail, RJ45 Whip, i-Series Pinout
- For wiring, distance specifications refer to the 4260HD & 4290HD Installation Manual.
