Environment:
- Rise series
- CVI5000
- IPConfig app (attached below)
Purpose:
The step will be provided on how to add a Rise series thru the CVI5000 webpage.
Procedure:
Note: The factory default keyboard IP address is 192.168.6.254.
- Confirm that devices are connected to the network.

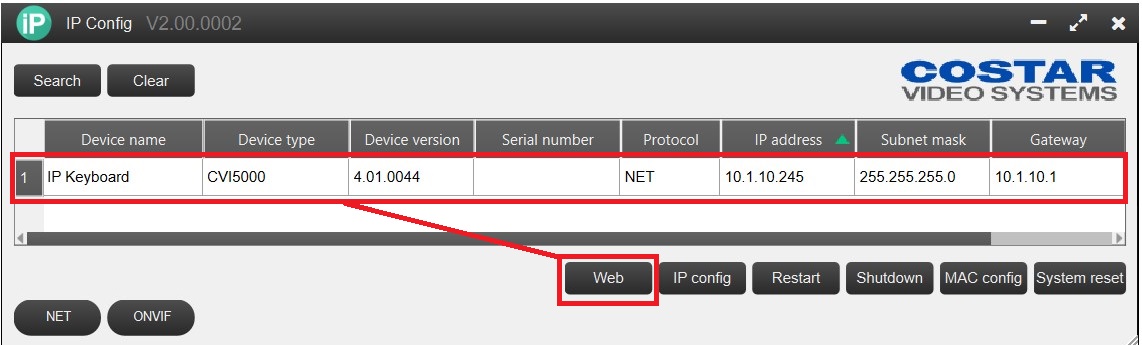

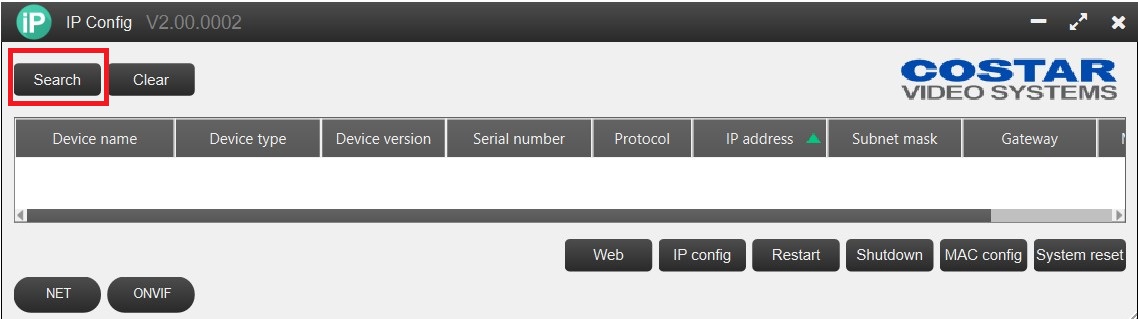

- Run the IPConfig app then Click on "Search" (Skip step 2-3 if the default IP address is being used)
- Once the CVI5000 is detected Click on "Web" and a webpage will open with the IP address.

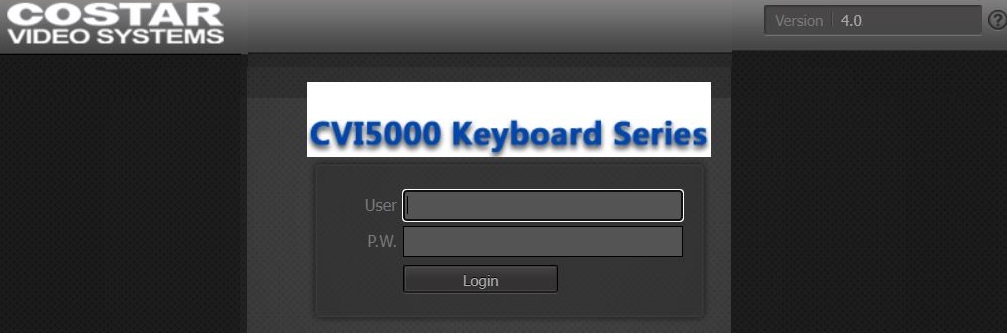

- CVI5000 login will appear ( Default username: admin password: 12345)

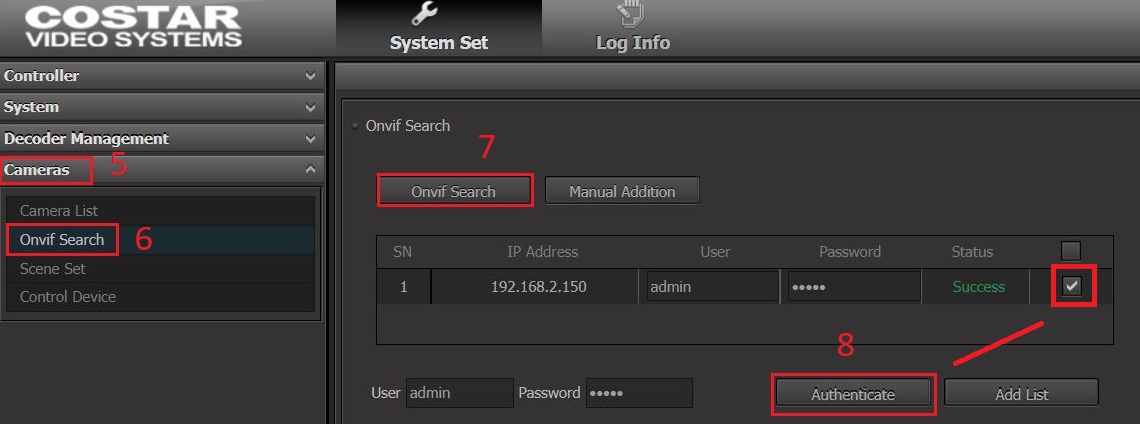

- Click the "Cameras" menu
- Click the "Onvif Search" from the Camera sub-menu below.
- Click "Onvif Search"
- Once the Rise camera appears Put Check Mark and Click "Authenticate"
- Once the Status shows "Success" Click on "Add List"

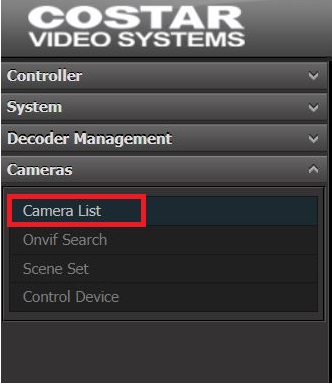

- Click on the "Camera List" from the left menu.

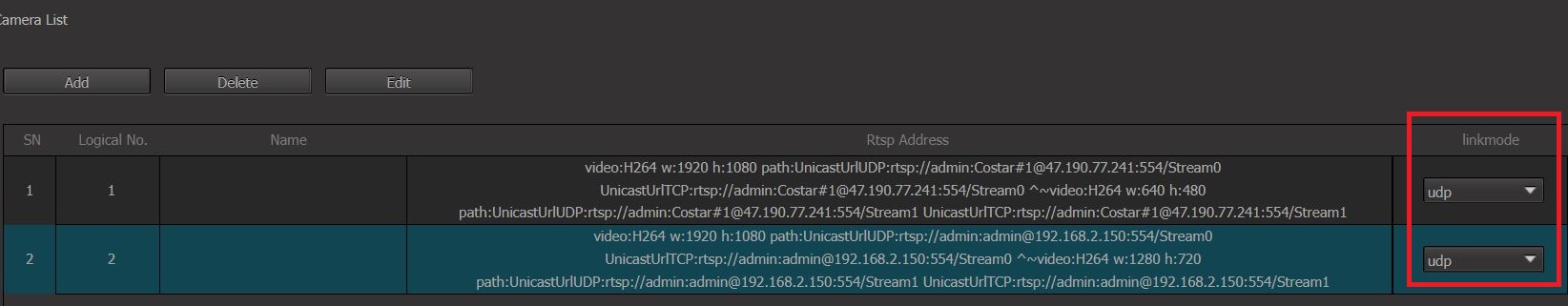

- Change the Rise RTSP stream "LinkMode" to "UDP"

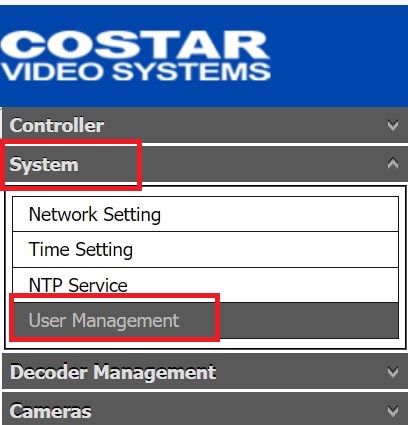

- Click on the System>User Management

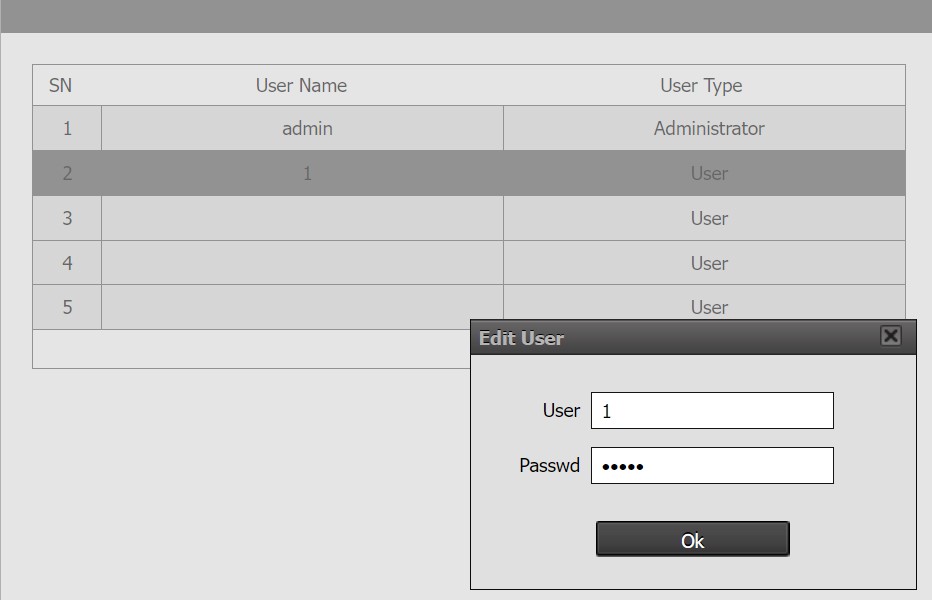

- Click "Edit" enter "1" for the User Name and enter a new password.

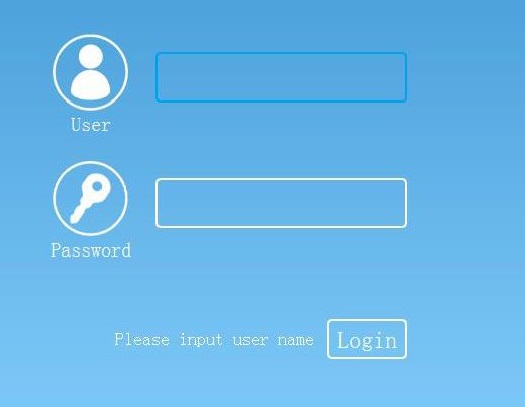

- Log into the keyboard as user: 1 Password: ( enter new password that was created)

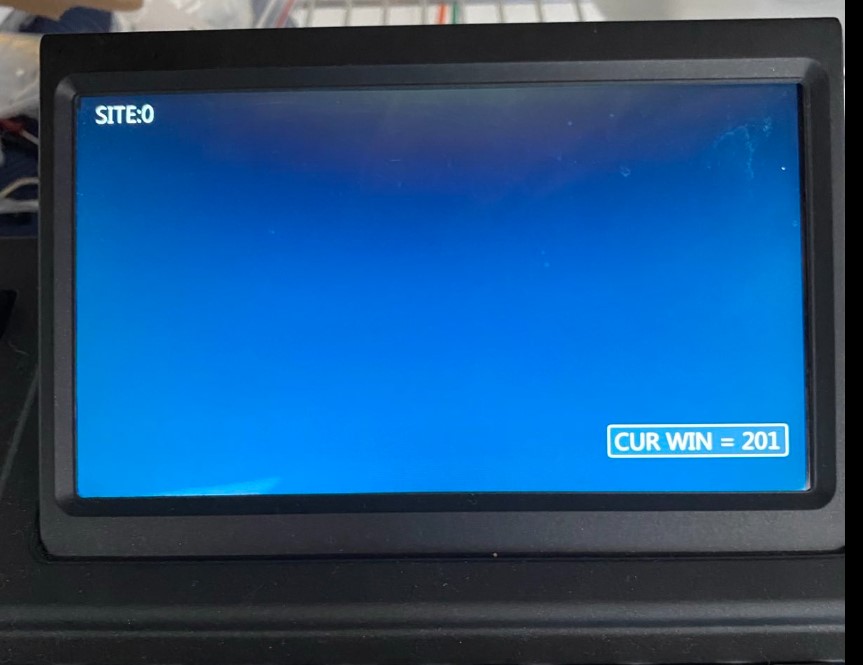

- Press "0" then "Mode" on the keyboard to switch the current mode to the active decoding mode as shown below.

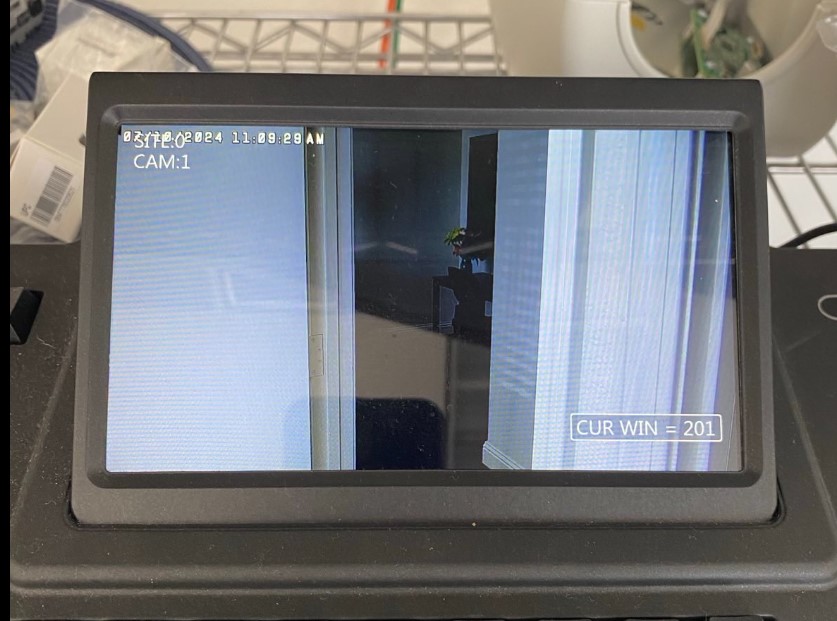

- Press 1 Cam or 2 Cam to switch between cameras.
