Issue: What is the metric shown on RISE cameras used for the OSD pressure reading?
Resolution: The OSD in RISE cameras will display the Absolute Pressure in Millibars.
- You will need to convert it to PSI https://www.unitconverters.net/pressure/millibar-to-psi.htm
- At sea level, the standard air pressure in millibars is 1013.2.
- Service pressurizes the cameras to 6-7 PSI.

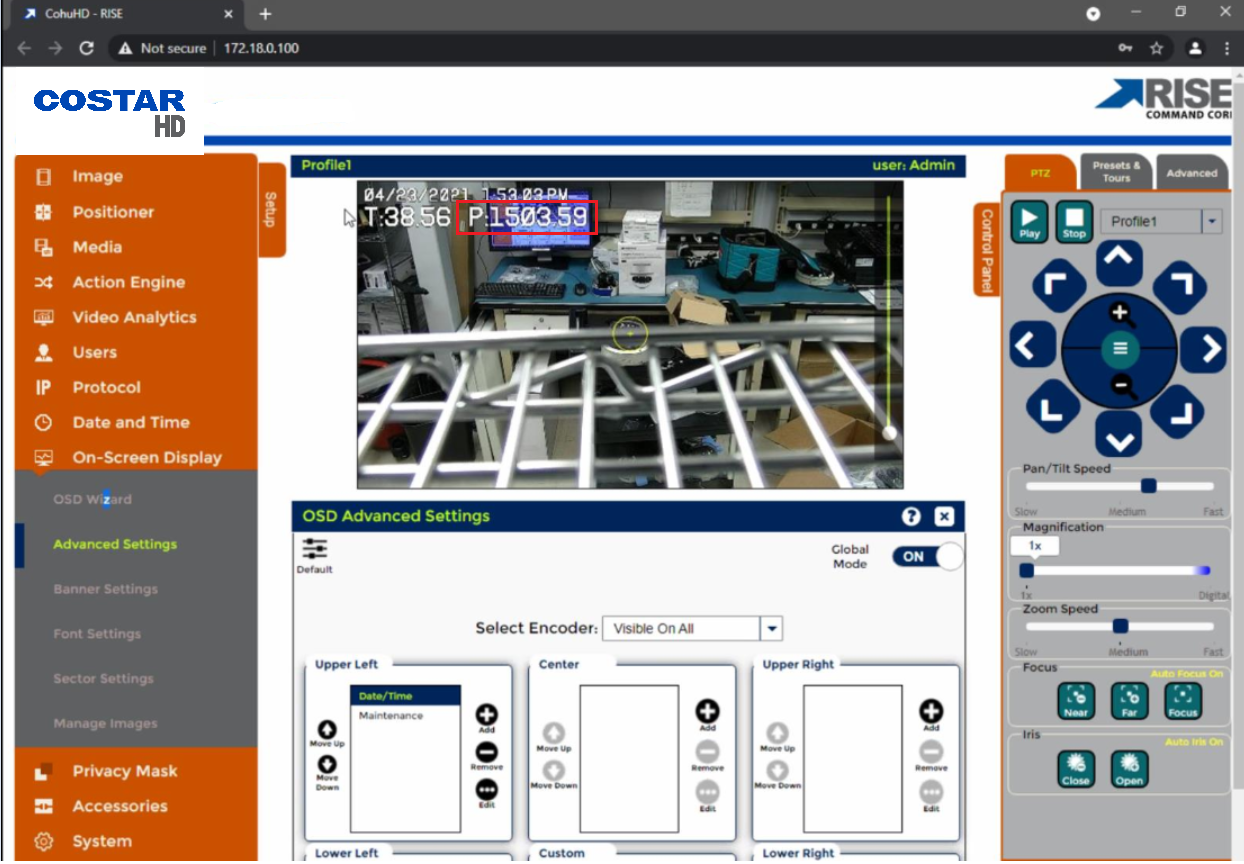

See Pressure OSD below for reference:
Converting 1503 millibars to PSI = 21.799171981 PSI
Now subtract the base value of 1013.2 millibars (14.69).
21.79 - 14.69 = 7.1 PSI
