ER8800 | Installation setup

Issue:

• No control

Hardware needed

• DTECH DT-5019 USB (RS232 to RS422)
• MS cable
• 24 Vdc Power supply
• WinMPC software v4918

Procedure:

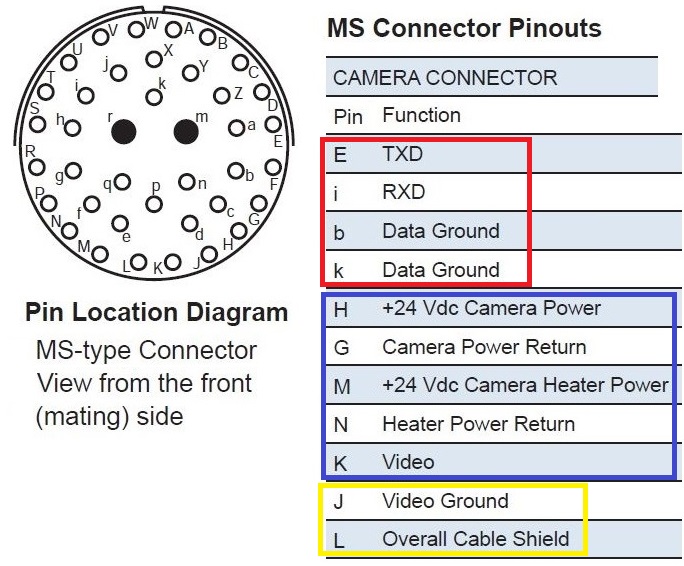

Refer to Pinout on the MS Connector:

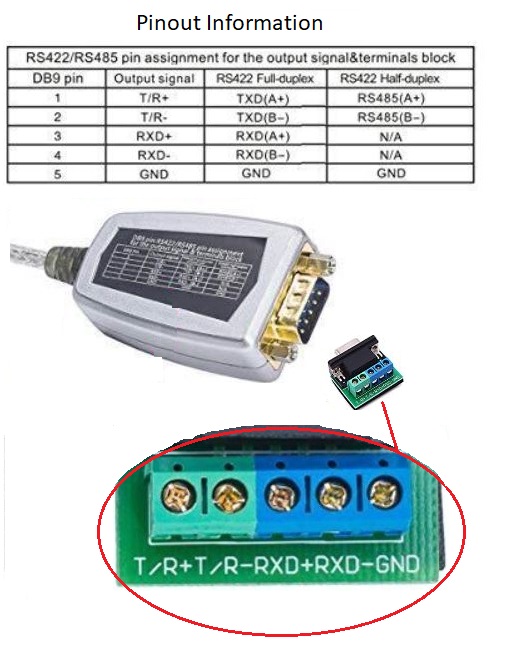

Refer to the Pinout on the USB/RS232 to RS422:

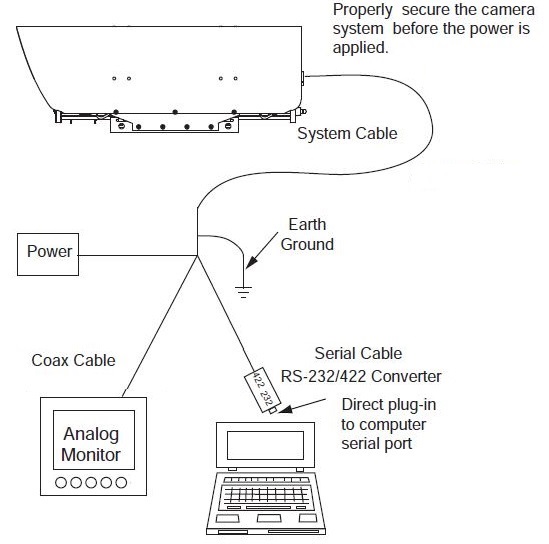

Make on connection:

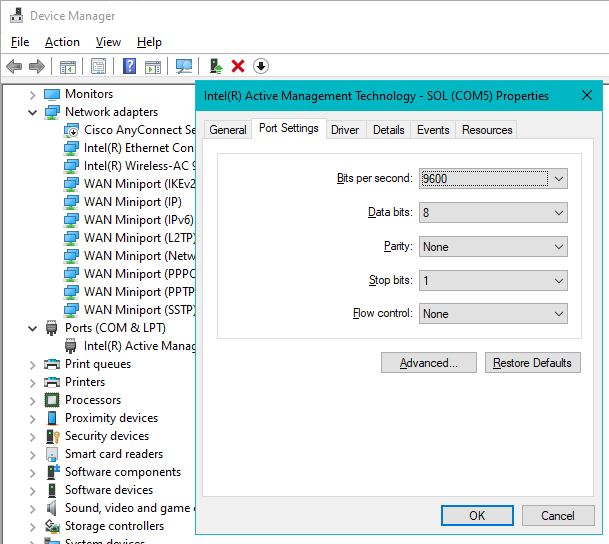

1. Open "Devices  Manager" and Match the setting in the WinMPC com set.

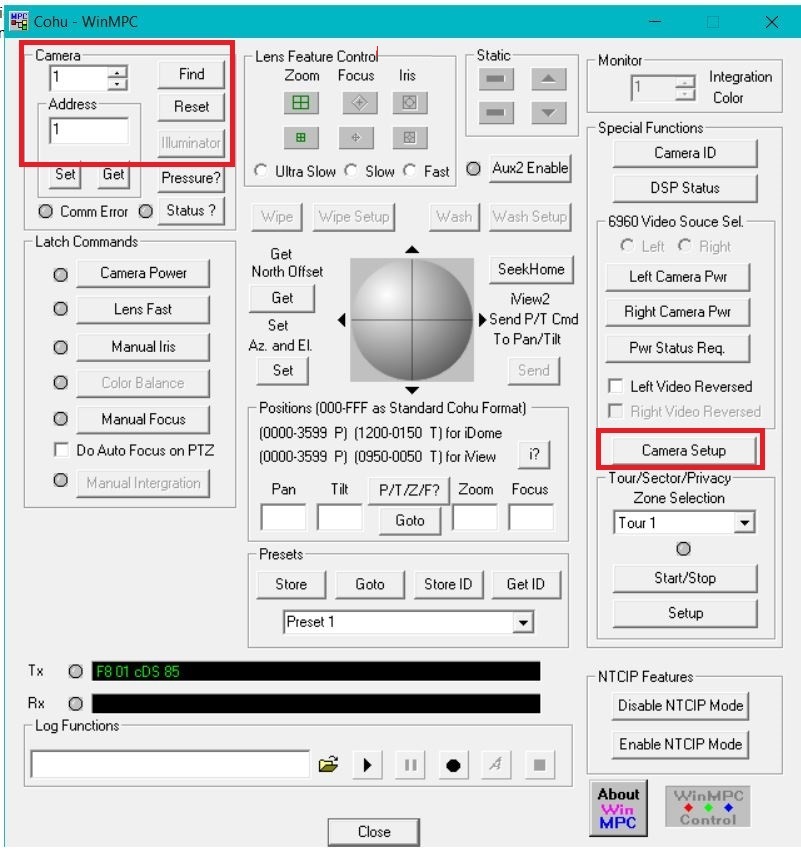

2. Open when WinMPC and Click on "Camera Setup"

3. Confirm the Com Port matches what was seen in Windows Devices Manager

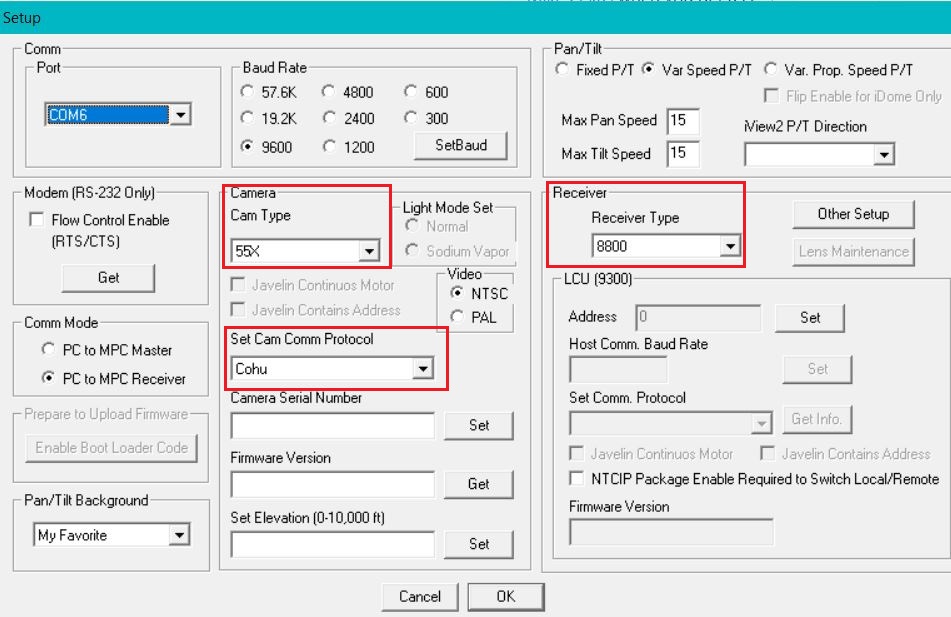

4. Select "8800" from the "Receiver Type" drop-down list.
5. Select "Cohu" from the "Set to Comm Protocol" drop-down list.
6. Select "55x" from the "Cam Type" down-down list. Press "OK"

7. Click on the "DSP" button

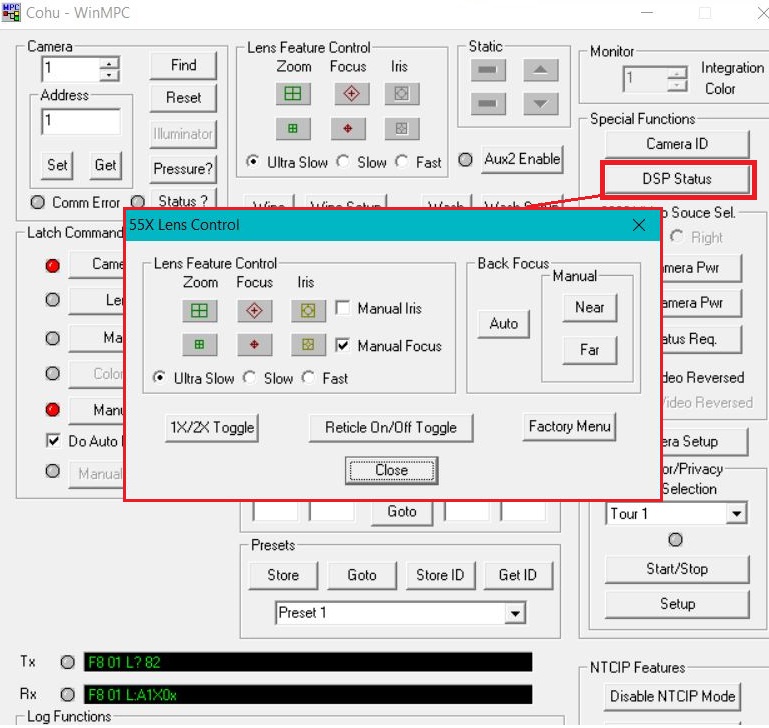

8. The Lens Control menu will appear


**WinMPC software is attached below:
