3432-xxxx | How to program a preset in ODM software

Environment:

• 3432-xxxx
• ODM software

Procedure:

1. Open ODM software

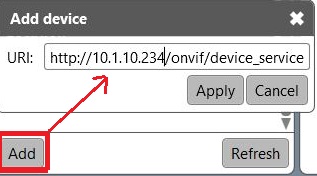

2. Click on "Add" the Enter the "IP address" of your 3432-xxxx Click "Apply"

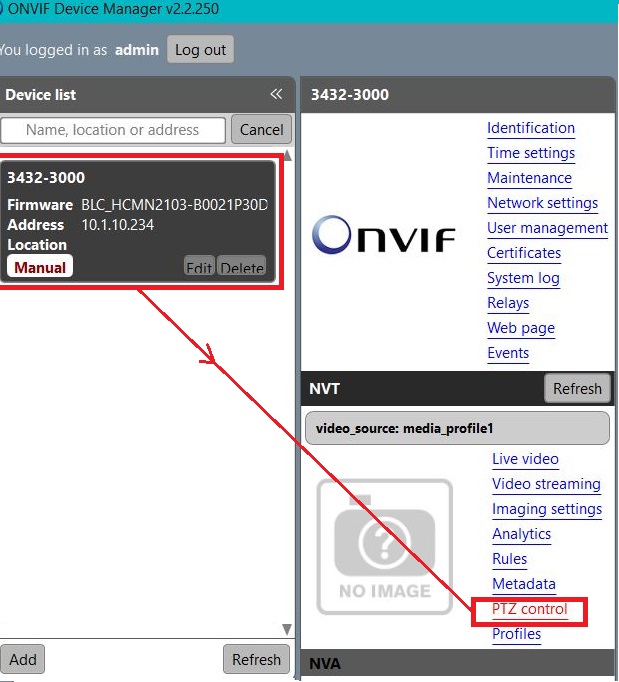

3. "Click" on the camera, then click on "PTZ control"

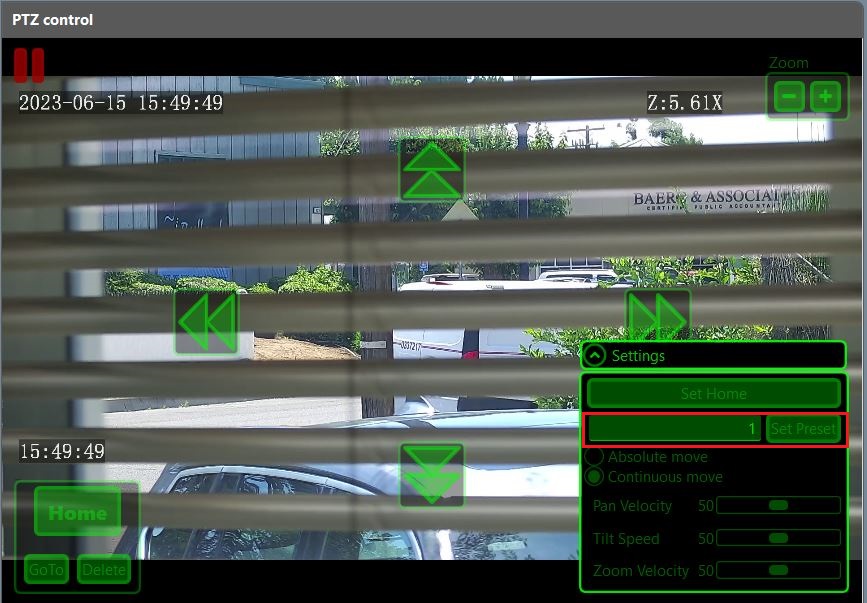

4. To Select field view Click the (-)(+) Zoom button located in the upper right corner, then Enter the "preset number" and "Set Preset"
5. The presets will be added to the left lower corner menu.
6. Repeat steps 4 If more preset is needed.

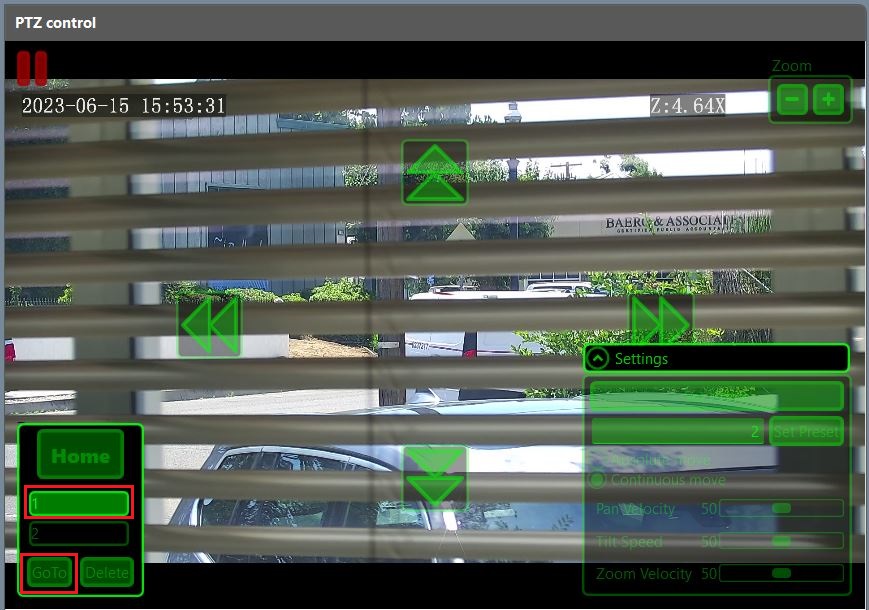

7. Select one of the presets then click on "GoTo" and the camera should zoom into the program position.
