Environment:
- CohuONVIFDiscovery Software (attached below)
- Helios Series
Procedure:
- Run the CohuONVIFDiscovery.exe file (7500Discovery.exe). Click to start it

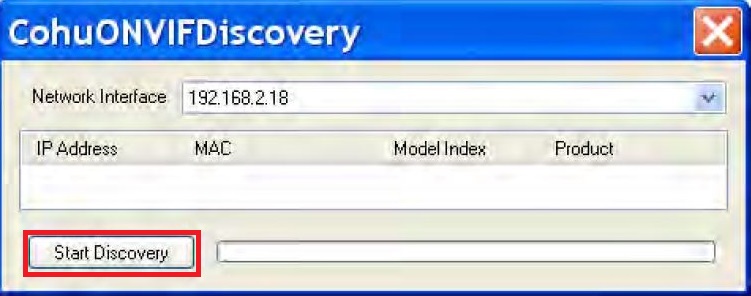

- The CohuONVIFDiscovery window will be displayed

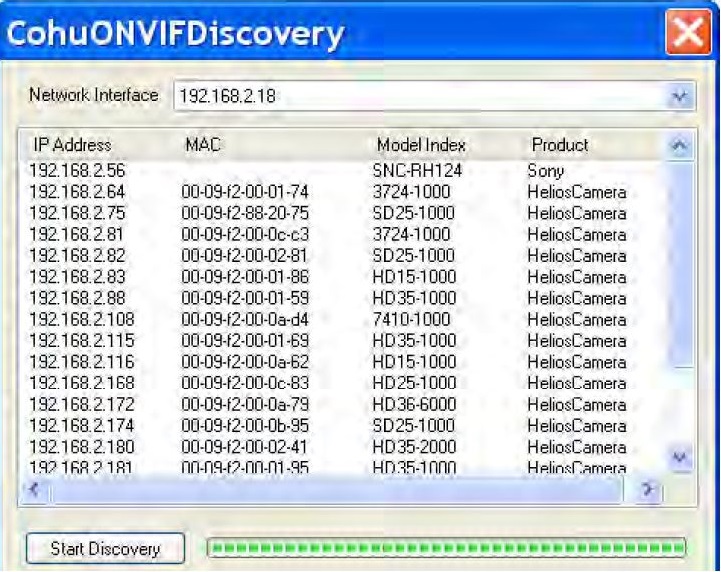

NOTE: Auto-discovery feature uses network multicast packets and may not work through network routers. - Click on the “Start Discovery” button. A list of cameras will be automatically displayed.
NOTE: Use the MAC Address or Model Index to identify CohuHD cameras. “00-09-f2” identifies cameras as CohuHD cameras. The MAC address of the camera is on the serial number label.

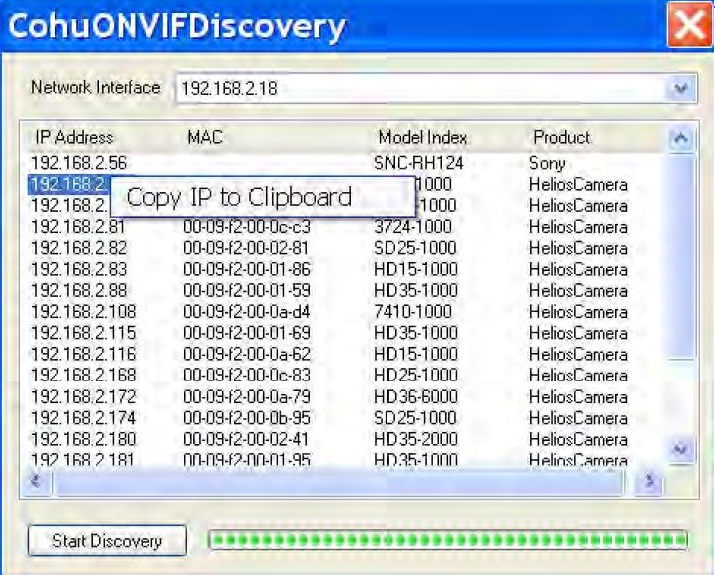

- Right-click a camera entry. Click Copy IP to Clipboard.
- NOTE: The CohuONVIFDiscovery software uses the ONVIF device discovery service. If the ONVIF discovery service is disabled, the CohuONVIFDiscovery software will not find the camera.
