RISE 4220HD Series cable/connector parts

Environment:

• Rise 2 & 3 Series
• 4220-1000-0x
• 4228-1000-0x
• 8196401-xxx (Shielded) MS to RJ45
• 8196402-xxx (unshielded) MS to RJ45

Note: POE++ power source only!

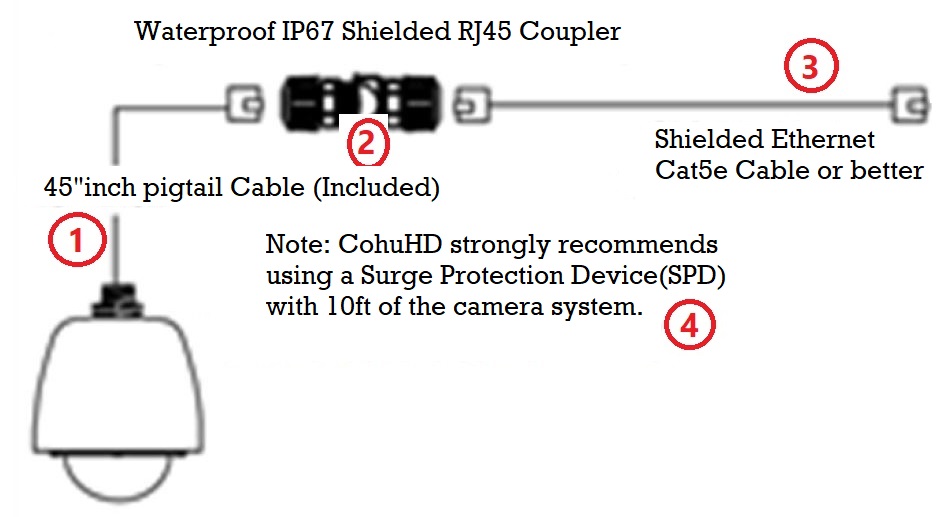

Parts list:

1. MS to RJ45 (3ft pigtail cable included)
   Note: For Shielded, Fixed Length Ethernet to MS connector part# 8196401-xxx


2. RJ45 Coupler (7610203-002) - CAT5/6 RJ45 IP67 Coupler
3. Field Cables CAT5e Cables (8194602-xxx) - Where xxx = 025, 055, 100, 150, 200, 250, 300, 328
   denoting the cable length in feet. Includes RJ45 connectors at each end of the cable.
4. Ethernet Surge Protection (7412009-001) - Outdoor IP66 rated ethernet/PoE++ surge protection device.
