TR-XXXX Series | Focus and Zoom TC-D5532WRX

Environment

• TR-1000
• TR-2000
• TR-4000
• Coaxial OSD Control
• Up-the-Coax (UTC)

Procedure:

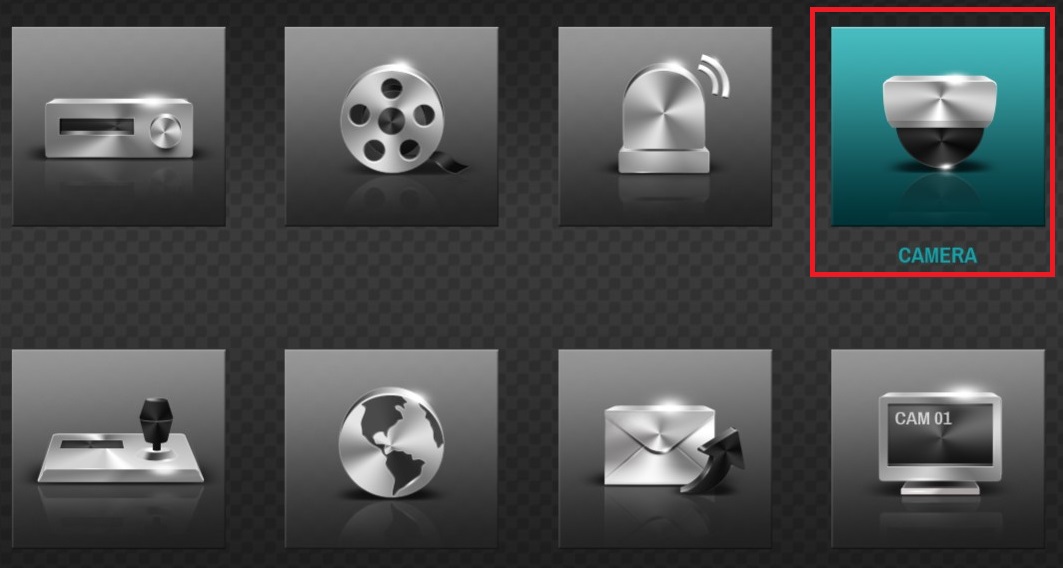

1. Click on the setup Icon
   (Note: Front panel setup icon located left of the screen)

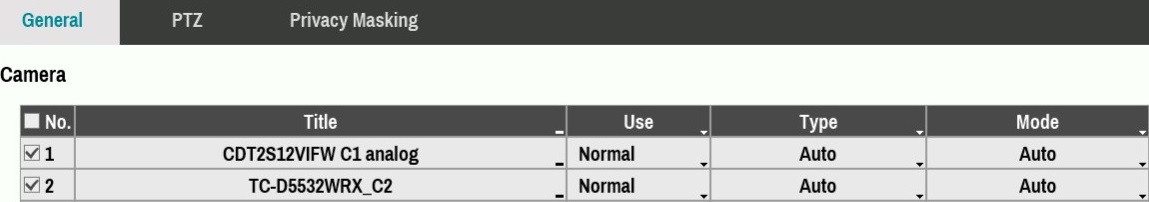

2. Put a checkmark on the Coaxial OSD control-supported camera.

3. Click on the "PTZ" tab

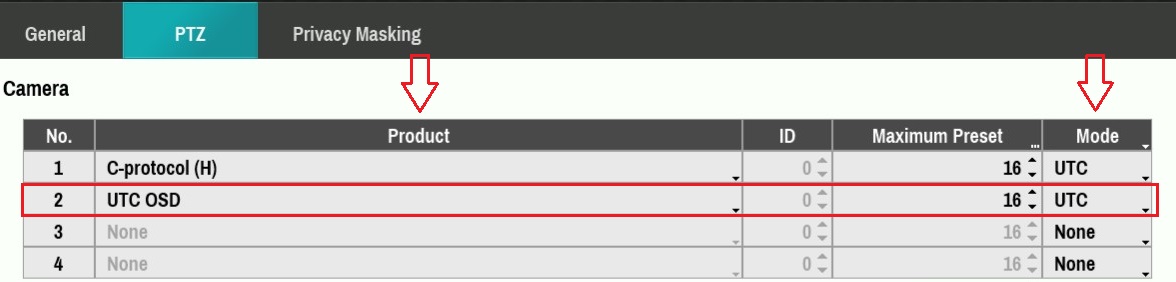

4. Click on "Mode" down and select "UTC"
   Note: UTC is only used for HD and Full HD cameras.
5. Click on the "Product" drop-down menu and Select "UTC OSD" and "Save"

6. Exit the setup menu.

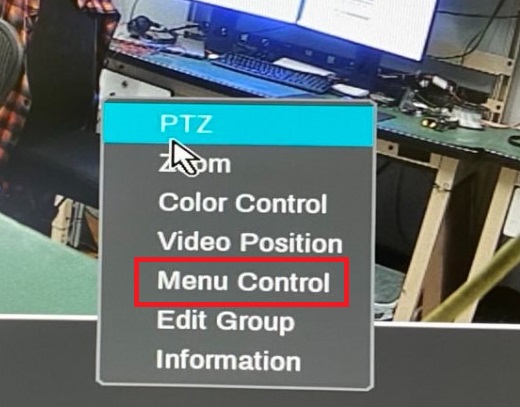

7. In the live display, Right-click on the camera that needs adjustment and Click on "Menu Control"

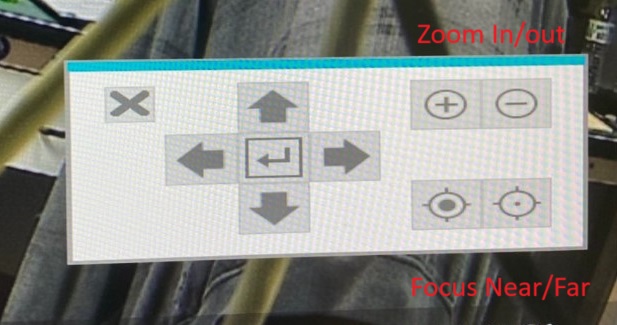

8. Click on the "Zoom In/Out" or "Focus Near/Far" icon to adjust the Field of View.

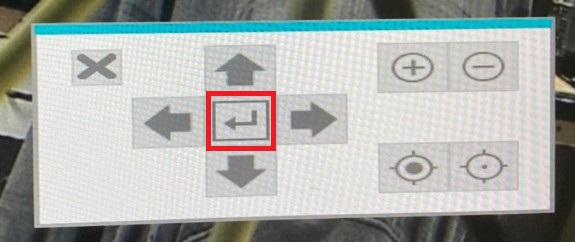

9. If adjustments need to be made to the camera's internal menu, Click on the "Center Arrow" Icon

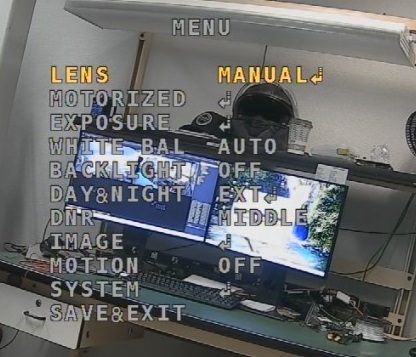

10. Navigate through the menu with the "Arrows" and use the "Center Arrow" icon to select.

11. Once changes are made "Save & Exit".

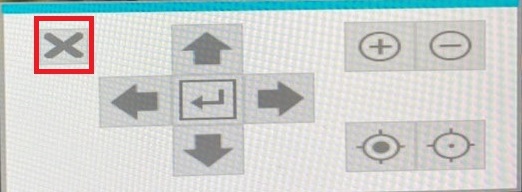

12. Click the "X icon" to exit PTZ mode when done.
