How to get the dump file from a 20 or 25 series XDI remotely using Starnet software

Issue:

Needing to pull the dump file of the NVR but not onsite.

Pre-requisite:

• PC with Starnet Loaded
• 20 or 25 series XDI already registered to the Starnet Software with admin rights

Solution:

1. Open the Starnet software and log in.

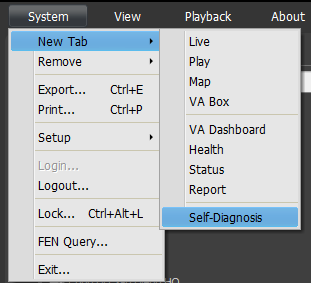

2. Click System>New Tab and select Self-Diagnosis.

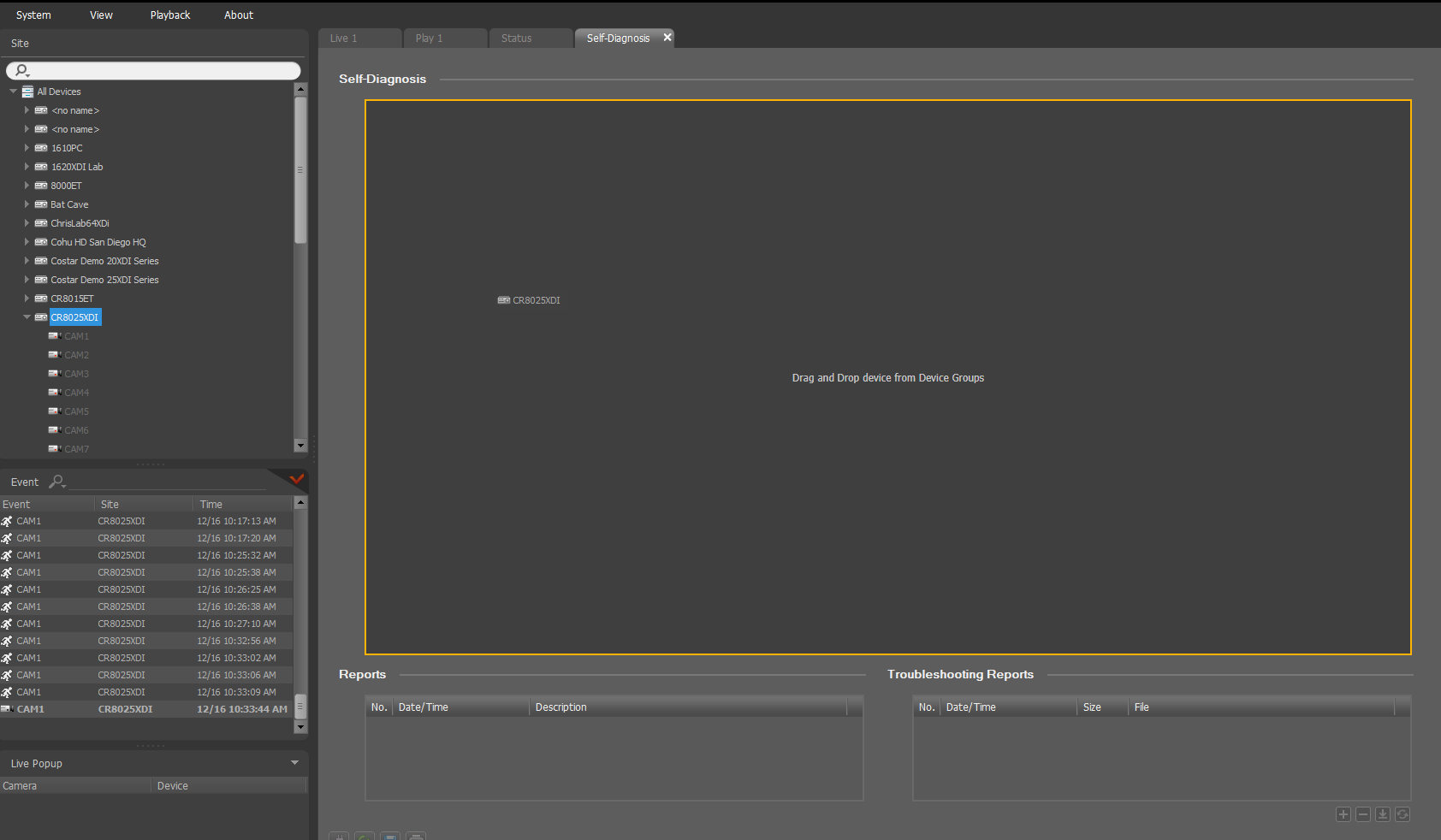

3. Drag the recorder from the left side and drop it into the Self-Diagnosis tab.

4. Locate Troubleshooting Reports and click the "+".

5. It will generate a file.

6. Once the file is done generating select the file and click the download icon .

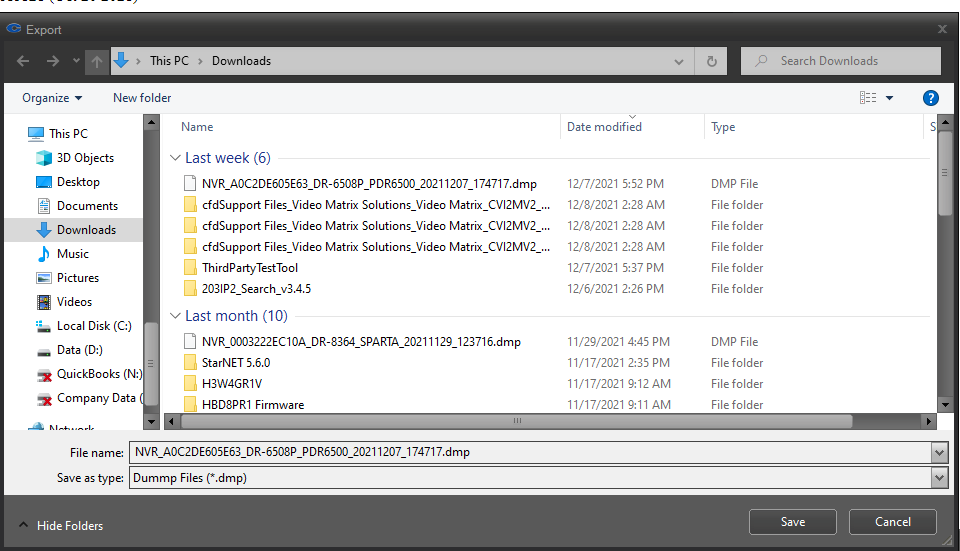

7. Select where to save the files and then click Save.

8. Email both the .dmp and the .md5 file to support@costarvideo.com.  If the file is too big, please load the files to a dropbox or another file sharing service.
