Issue:
We need some cameras displayed on a PVM and would like to use the RTSP stream from the recorder.
Solution:
- Move the mouse to the bottom right corner and select Setup.

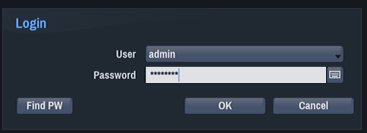

- Enter the credentials of the recorder and click OK.

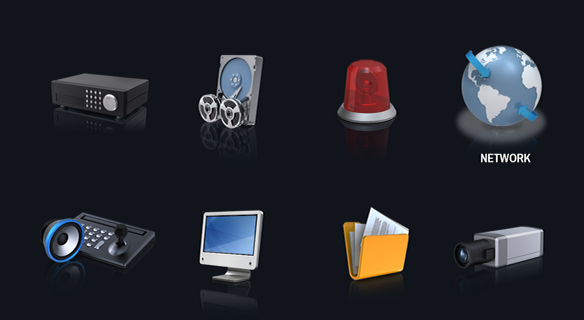

- Select Network.

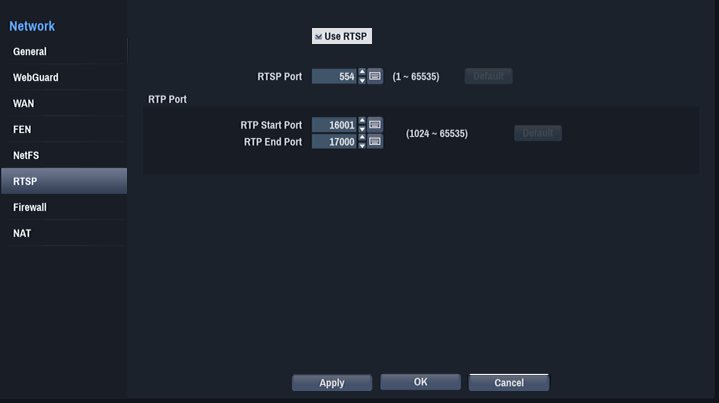

- Click on RTSP on the left side.
- Click the box next to Use RTSP to turn the RTSP on and click Apply.
- Click OK at the bottom.

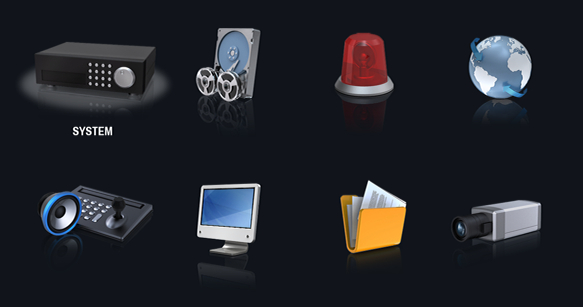

- Click on System.
- Click User on the left.

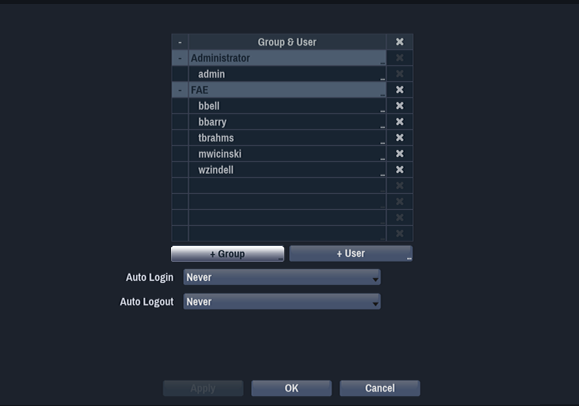

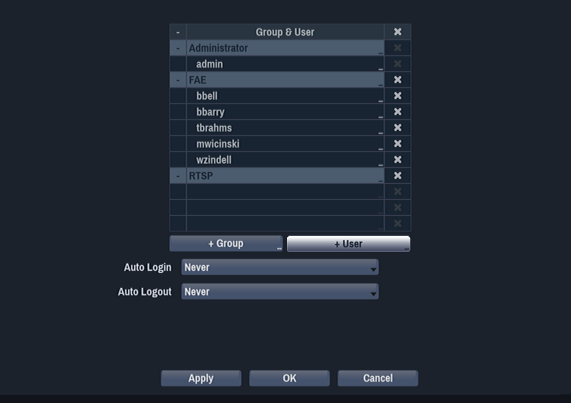

- Click + Group to create a new group.

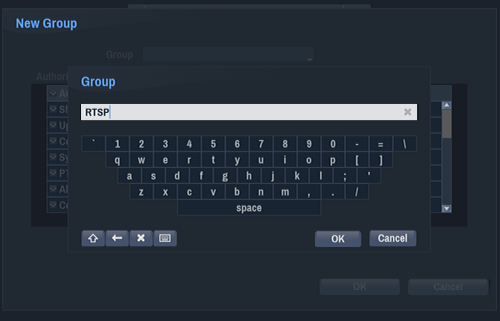

- Name group RTSP and click OK.

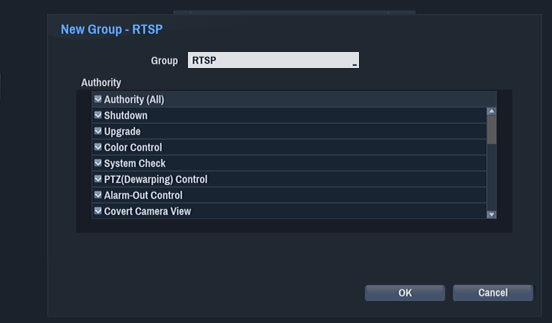

- Click OK again.
- Click + User.

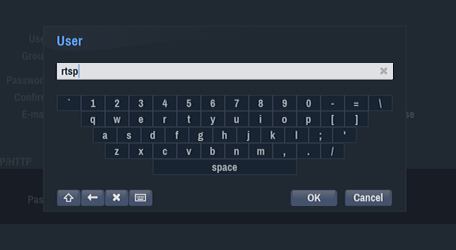

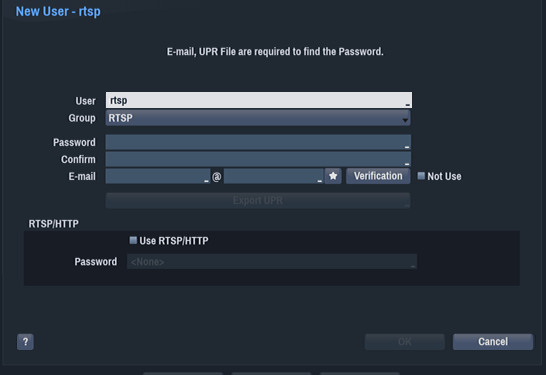

- Name the user rtsp and click OK.
- Fill in the following information:
- Password= Costar#1
- Confirm= Costar#1
- Email= rtsp@email.com

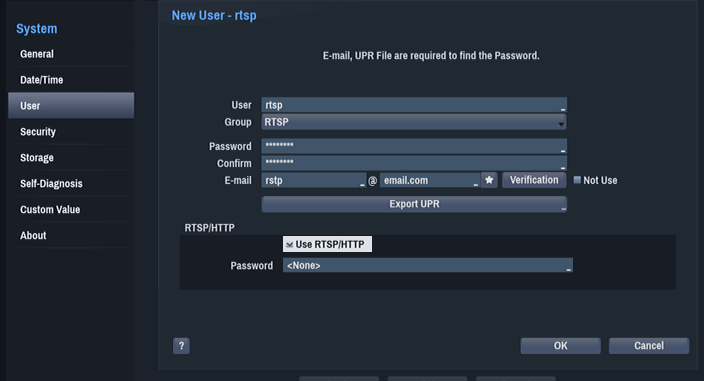

- Click the box next to Use RTSP/HTTP.

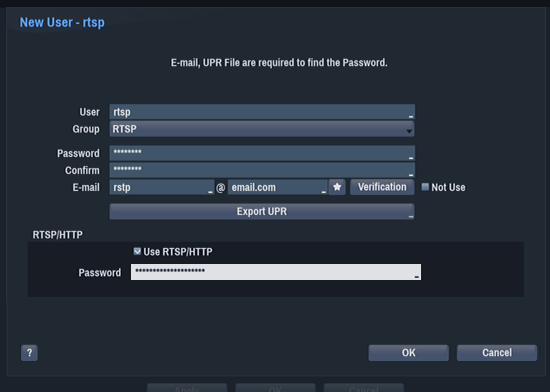

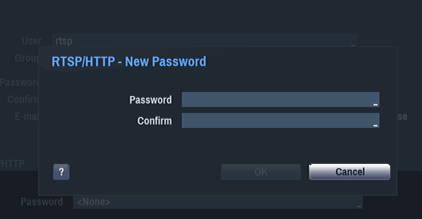

- Click the newly populated Password box. A new window will open. Enter the following:
- Password= Costar#1
- Confirm= Costar#1
- Click OK.
- Click OK again.

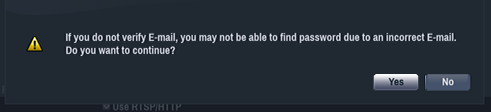

- Click Yes on the warning box.

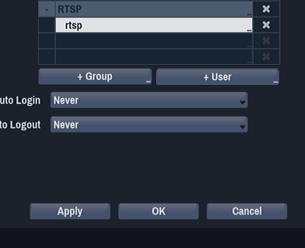

- Click Apply and then OK.
-

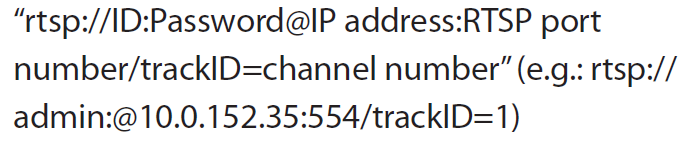

Access the RTSP stream using the following RTSP format.
Note: You can also specify the individual stream of a channel by adding &streamID=2 (2 = the secondary stream). e.g... rtsp://admin:password@10.0.152.35:554/trackID=1&streamID=2
