12 to 48 Volt DC or 24 Volt AC
Power Consumption 7.9W DC max

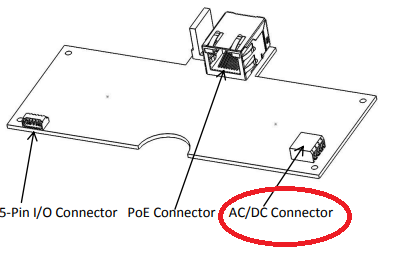

Location of Connector

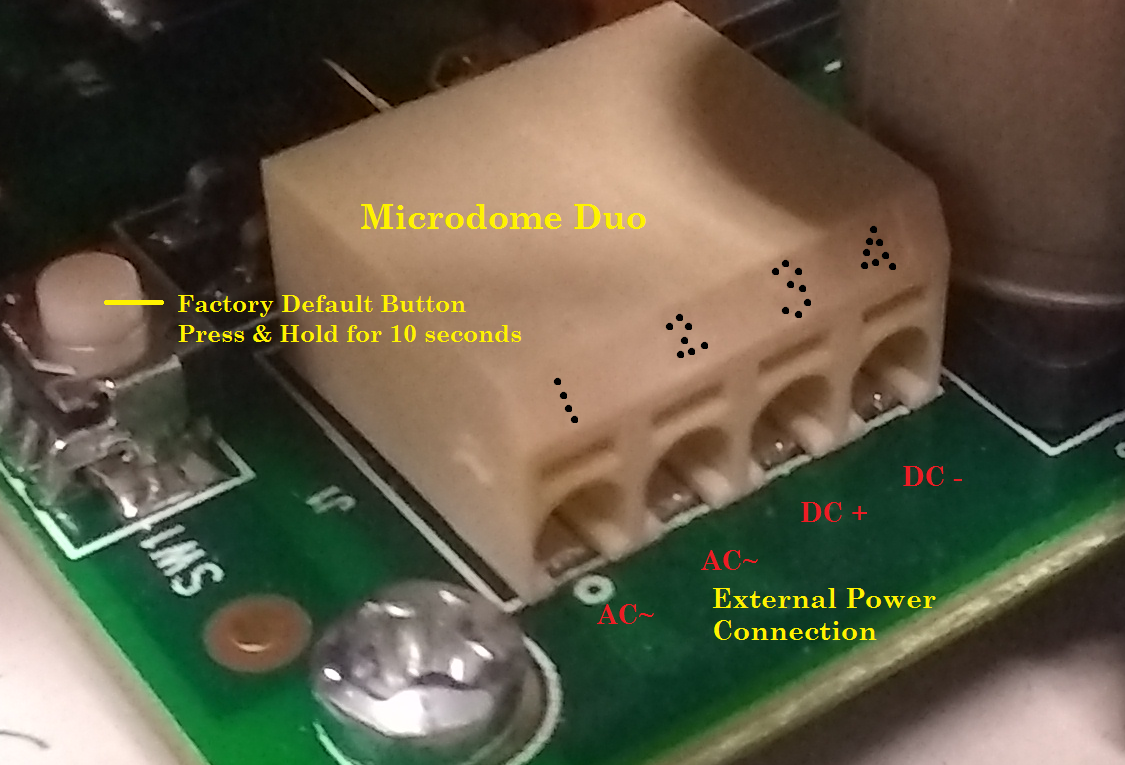

If the camera is to be powered by a separate outside AC or DC source, run the wire (not supplied) through the grommet and connect the power cable to the 4-position connector on the Main Board. see illustration and detailed instructions)
- The Poke-Horne connector requires 18 AWG to 24 AWG Wire (sold or stranded).

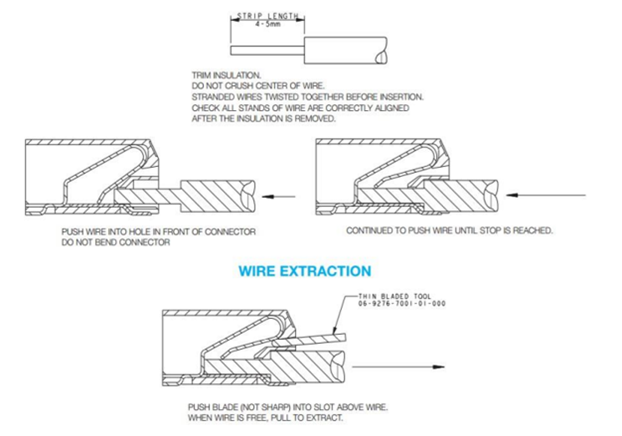

- Please refer to picture below more information cable preparation and use
NOTE: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction. Wiring should be UL Listed and/or Wire suitable for the application.
