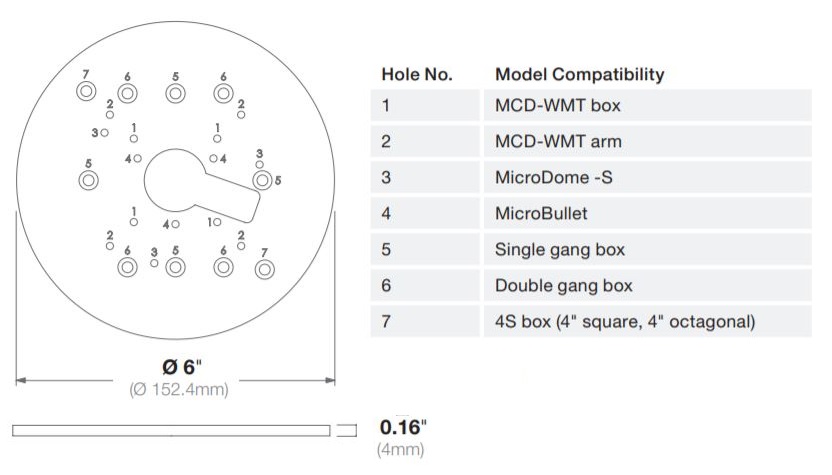

MCD-EBA will not match up flush with Microdome G2

Since we use one plate (MCD-EBA) to accommodate different electrical boxes and the Microdome has a small form factor, we cannot avoid the fact that there will be an overlap of the plate, resulting in exposed mounting holes.

The 4S mount hole dimensions are larger than a Microdome’s diameter. The plate is larger than the footprint of the camera.

We don’t sell dedicated plates for each hole pattern.  So, if they are using a single gang then the 4” square box hole pattern is exposed as a result.
