How to Adjust Tilt, Pan and Focus on a AV20185DN series

Environment:

AV20185DN
AV40186DN

Procedure:

1. Power on camera to adjust tilt, pan, and focus

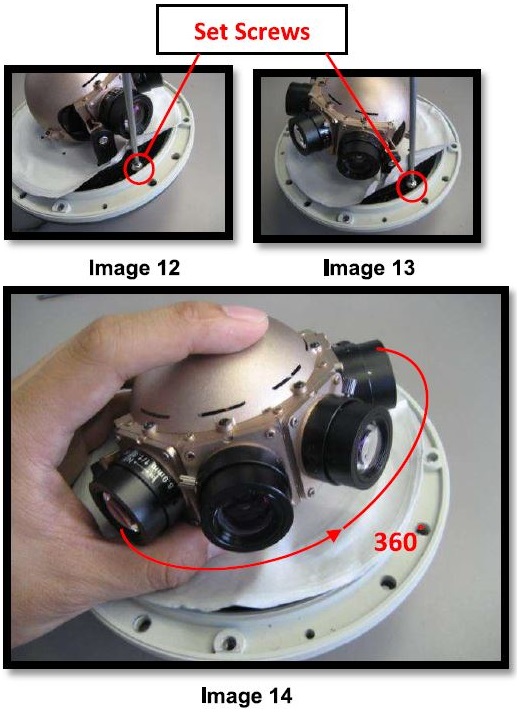

2. To adjust the pan, use a #2 Phillips screwdriver to loosen both screws on the sides of the plastic gimbal bracket as shown in Image 12 and Image 13.
3. Adjust the pan as required and tighten the screw from step 2 shown in image 14.

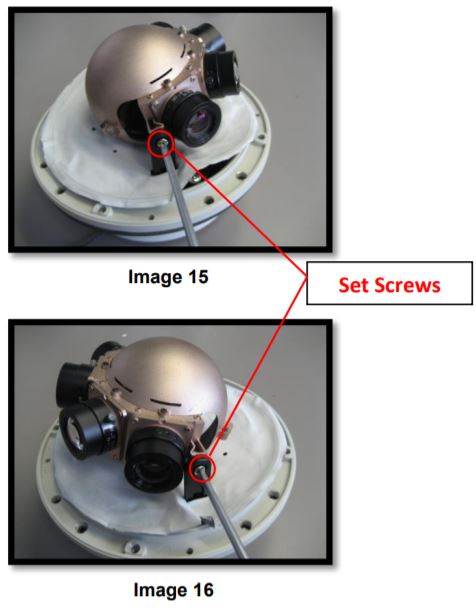

4. To adjust the tilt, use a #2 Phillips screwdriver to loosen both screws on the sides of the plastic gimbal bracket 1/4 turn (Image 15 and 16). CAUTION: Do not remove the screws!

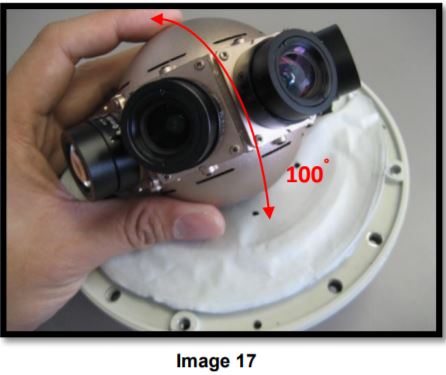

5. Adjust lens tilt as required and tighten the screws from step 4 shown in image 17. NOTE: the camera has 2-Axis gimbal with 360° pan and 100° tilt for easy and accurate positioning.

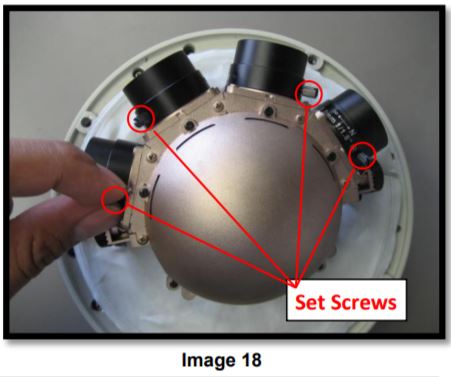

6. To adjust focus, loosen the set screw on each lens as shown in Image 18.
7. Adjust lens focus as required and tighten the screws from step 6.
