AV NVR | How to playback video

Environment:

• AV-800
• AV-1600
• AV-NVR

Purpose:

• Instant playback
• Alarm playback

Instant Playback:

1. While viewing the camera live Click the "Instant Playback" icon



2. Select time by dragging the cursor then press the "Play" icon
   Note: To export an avi clip, a bookmark has to be set.



3. Press the "Live" Icon to go back to view live cameras




Alarm Playback:

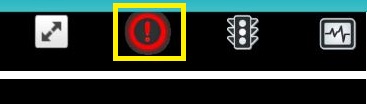

1. On the front panel or from the remote browser locate the Flashing "Alarm" icon upper right corner.
   **Note: You may need to use the slider bar at the bottom of the page if the icon is not seen.



2. Select the "Alarm ! icon" and you will see a drop-down list.
3. Click on the Play icon on the timeline that will be viewed.

4. Select time by dragging the cursor then press the "Play" icon
   Note: To export an avi clip, a bookmark has to be set.

5. Once done viewing the playback, click on the "Live" Icon to go back to live cameras.
