exacqVision: How to add a camera using ONVIF

Environment:

exacqVision Client version 19.12.4.0
exacqVision Server version 19.12.4.0
AV12CPD-236 version version 37101

Issue:

An Arecont Vision camera (i.e. AV12CPD-236) needs to be added to an exacqVision server.

Resolution:

1. Go to the webpage of the AV12CPD-236.

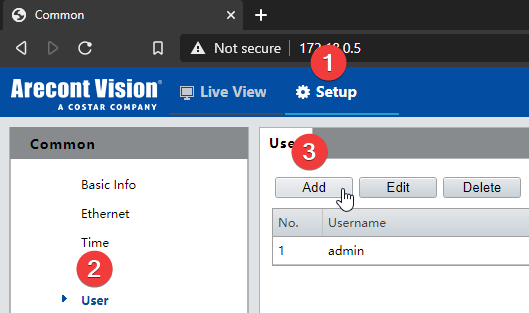

2. Click Setup > User > Add.

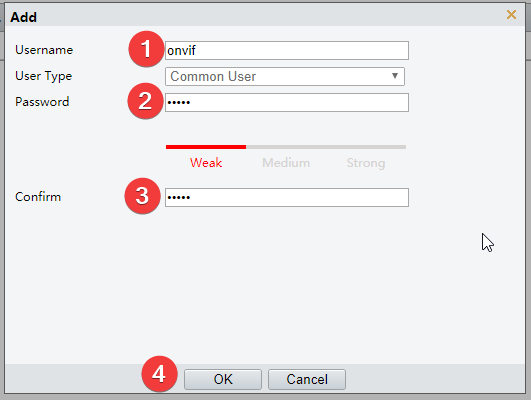

3. Provide a username and password then click OK. In this example, the below was used.
   • Username: onvif
   • Password: onvif

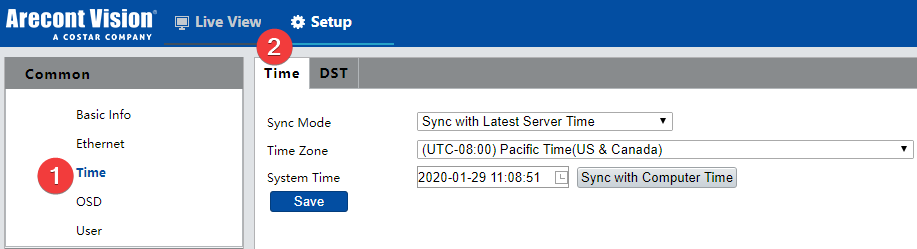

4. Click Time and next to Sync Mode select your appropriate setup then click Save.

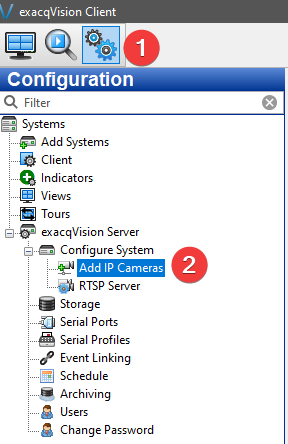

5. In the exacqVision client click Setup > Add IP Cameras.

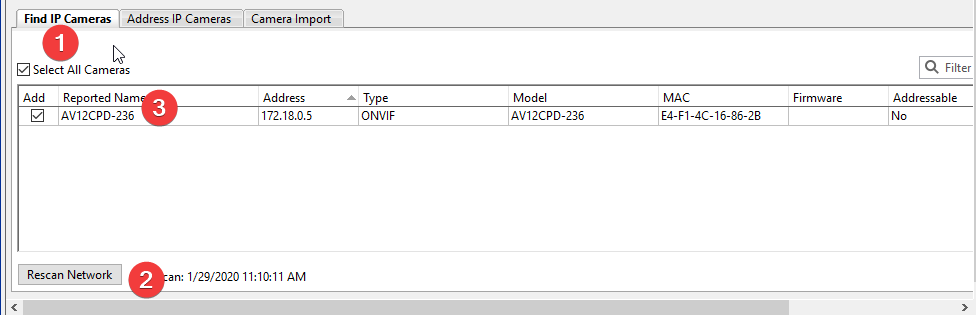

6. Click Find IP Cameras > Rescan Network > Select the AV12CPD-236.

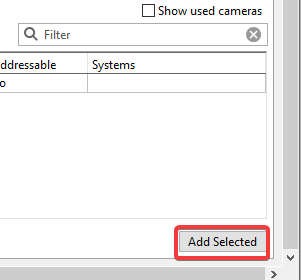

7. Click Add Selected.




8. Enter the username and password from Step 3.

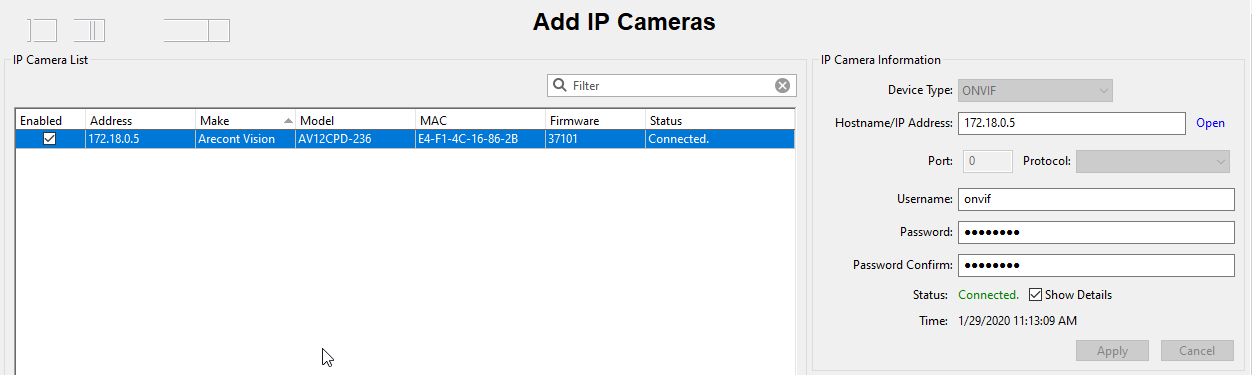

9. Within a minute the status should say Connected.

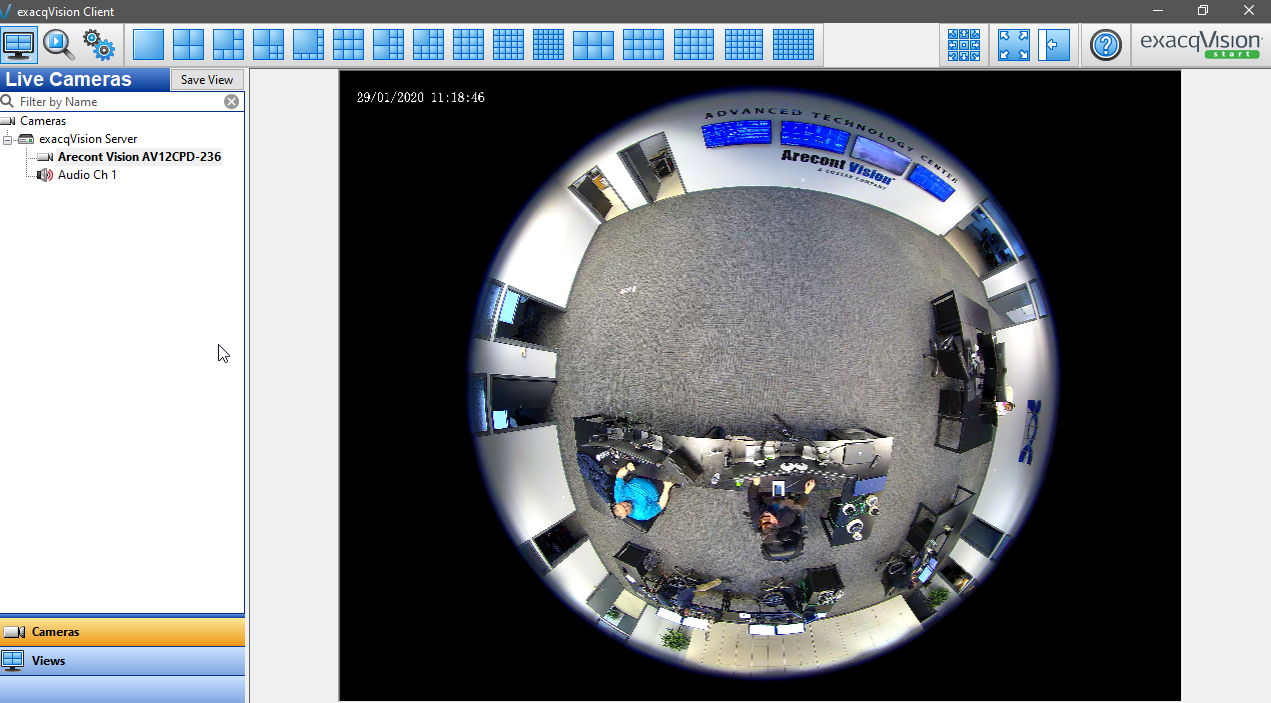

10. Click Live and drag the camera over to the panel.
