ConteraIP Bullet Series | How to adjust the bracket

Environment:

• AV5426PMIR-S
• Security L-Key

Procedure:

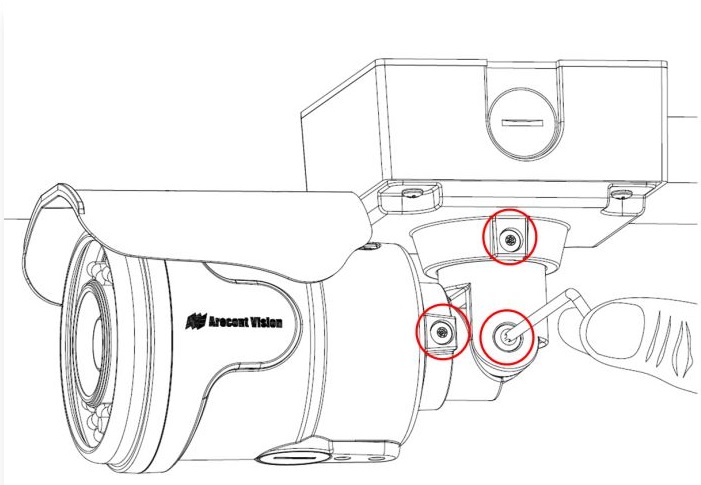

1. Use the supplied security L-key to adjust the bracket to the appropriate position. The bracket with 3
   axes enable easy installation in any location, including 360° camera body rotation, 90° tilt, 360°
   bracket rotation.



2. Once the security screws are loosened Pull gently then Rotate to the position needed.

3. Then retighten screws once the position is established.
4. Note: The only screws that the L-Key loosens need to be loosened to adjust the bracket.
