Contera Dome series | Image is distorted

Environment:

• Dome series
• AV02CID-100/200
• AV02CLD-200

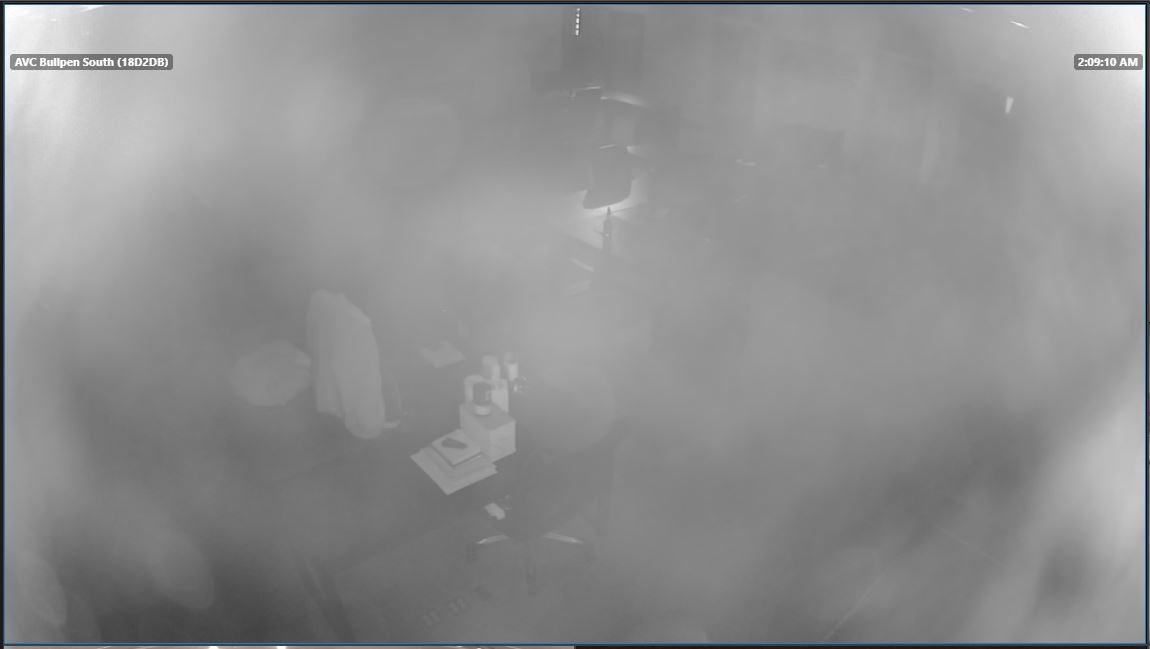

Issue: The image at night is distorted

Problem:

• The bubble is dirty (dusty environment, installation)
• The bubble is scratched from (installation, or improper cleaning)
• The IR intensity may be set to high per the field of view.

1st Solution: Lens and Bubble cleaning

2nd Solution:

1. Log into the camera webpage
2. Select "Image" menu

3. Change IR control  to "On"

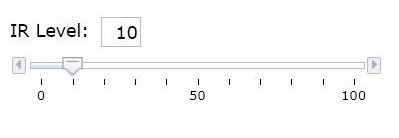

4. Adjust the "IR Level" to a lower value (this we be determined by the field of view)

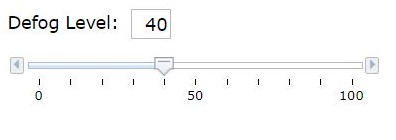

5. Adjust "Defog Level" to a Higher value (this we be determined by the field of view)

6. Review camera images after changes have been made.
