ConteraCMR | Change ip address on camera

Issue:

• The newly added camera is on a different IP scheme
• The camera has a static IP address

Environment:

• ConteraCMR
• Arecont IP Utility
• Arecont vision camera

Procedure:

Note: This step has to be done at the recorder.

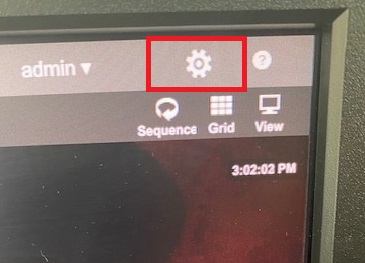

1. On the ConteraCMR from the panel, menu Select the "Gear" icon located in the up-left corner.

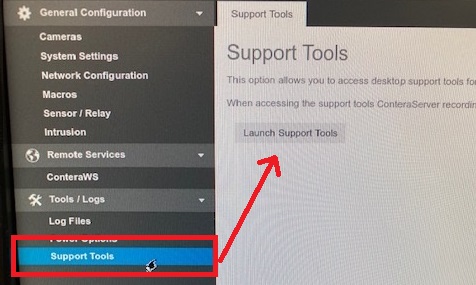

2. Click on the "Support Tool" then click on "Launch Support Tools"

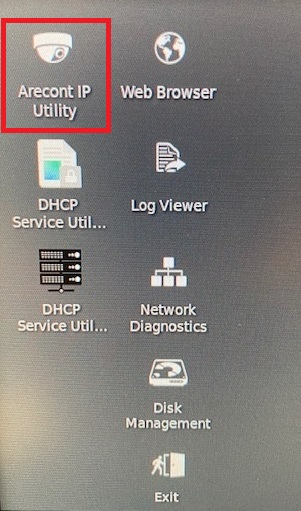

3. Click on the "Arecont IP Utility" Icon



4. Once the Arecont IP Utility is open it will automatically scan.

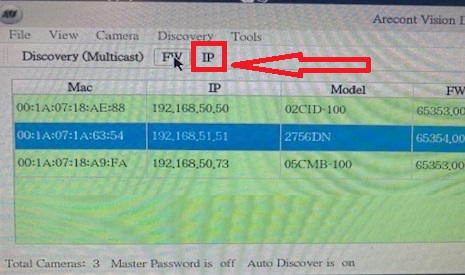

5. Select the camera you want to change the ip address and click on the "IP"

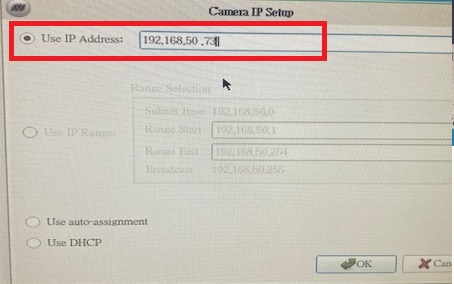

6. Enter the IP address in the "Camera IP Setup" and then click "OK"
   Note: Please refer to the article for IP address ranges per recorder.


7. Wait 30 sec before clicking the IP address change.
8. Click on the "Exit" icon and Log Back into the Contera software.
9. Click on the "Gear" icon
10. Click on the camera menu and add cameras.
