AV12CPD-236 | Motion setup

Environment:

• AV12CPD-236
• IE must be used for viewing live video

Procedure:

1. Log into the camera ( Default login admin/AVCoster)

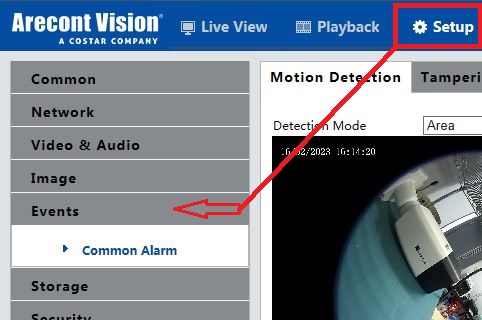

2. Click on Setup>Event menu



3. Click "Motion Tab" then Add "Area1"
   Note: you can change the size of Area 1 by Left-clicking and dragging the corners.

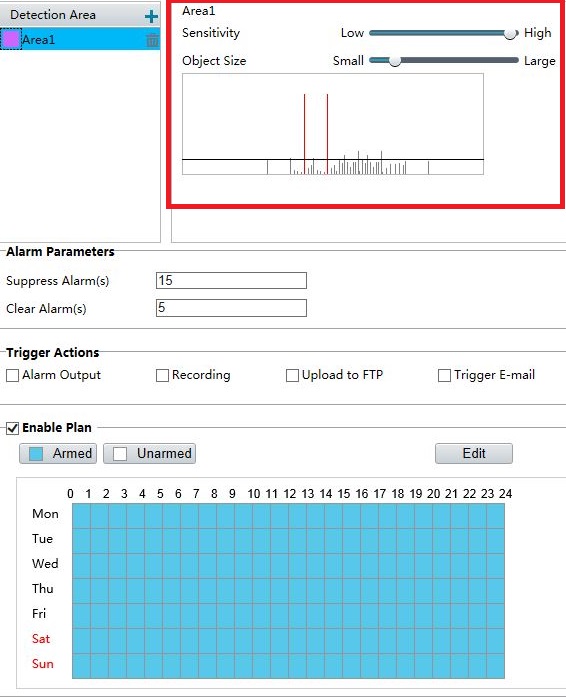

4. Once the Area1 size is done, Put Check in the "Enable Plan" and "Save"
5. Take a look at the Area1 Window graph, you see a spike when movement is detected.


Note: The Object Size Slider can be adjusted for smaller objects if needed.
