Environment:
- ConteraCMR recorder
- Spot Monitor Web Services v(2.2.1.19)
Hardware: ConteraVMS: Spot Monitor Requirements
Procedure:
- Install the Spot Monitor Web Services.
- Click on the short created after install is completed.

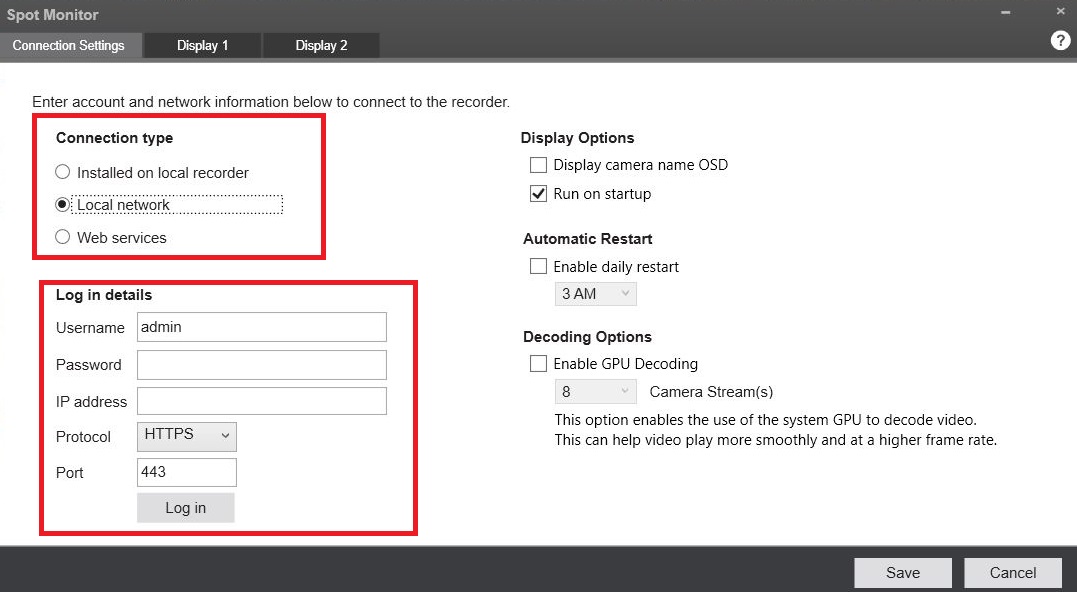

- Enter the information of the Contera recorder you wish to connect to in the "Connection Setting" tab. Click "Save"
Note: "Local Network" will need the front panel login

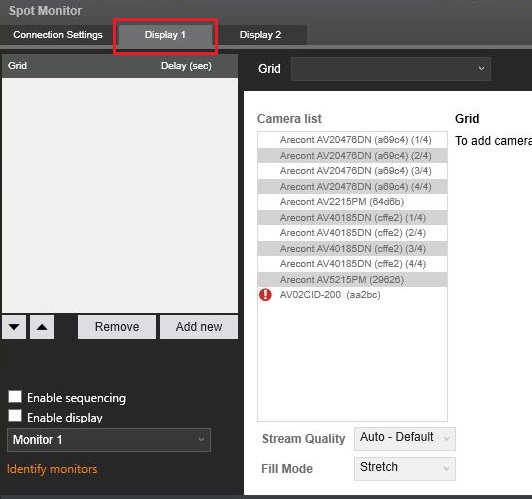

- Click on the "Display 1" tab and a camera list from the recorder will be seen.

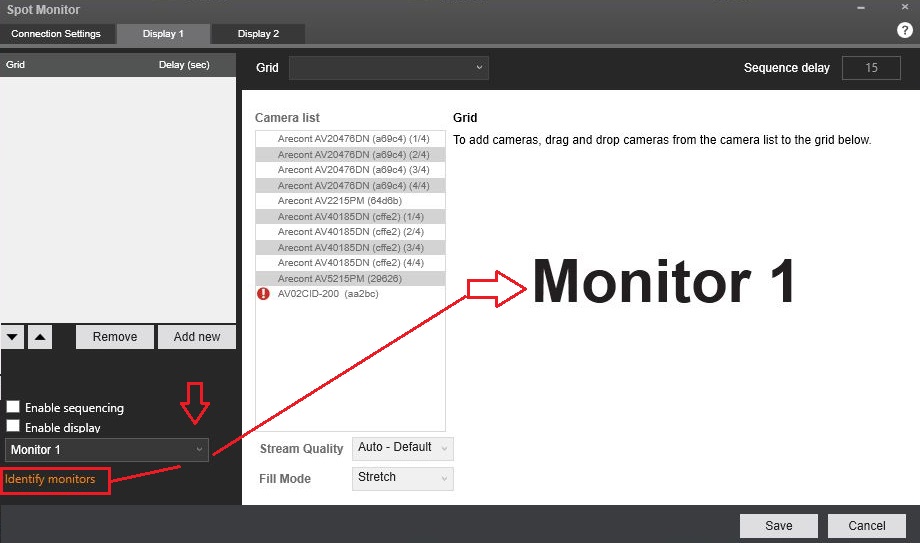

- Click on the "Identify Monitors"

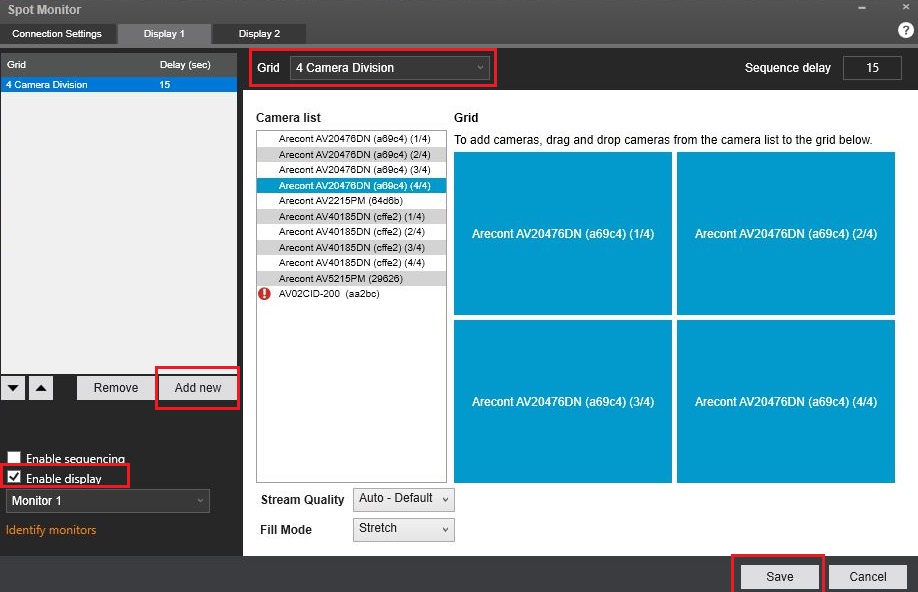

- Click on "Add New"
- Select "Grid" and choose Display. (Option: Singles/4/7/9/10/13/16)
- Drag cameras into the Grid selected
- Put a Check on "Enable display" then click "Save"
- Your Display will start running
