ConteraIP MicroDome Duo LX | Pan and Tilt Adjustment

Environment:

• AV16956DN-XX
• AV4656DN-XX

Procedure:

1. Use the supplied security L-Key to loosen the four (4) screws which secure the cover
2. Remove the cover.
3. Adjust the pan and tilt of each camera module to obtain the desired field of view.

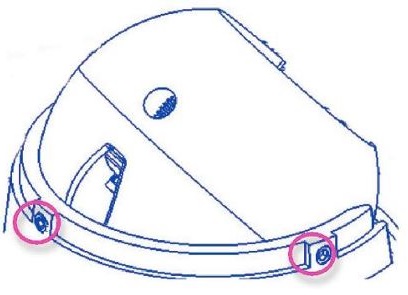

   Do not press the remote focus  motor against the sides of the camera module when adjusting the field of view (refer to the image below)

4. Lock the camera head in place by tightening at least two of the three set screws with the supplied flat-head screwdriver. Do not over torque the screws( refer to the image below)

   Note: The screws are not pre-installed in the camera. They are included in the accessory pack with the camera and should be installed prior to the completion of the installation to ensure that cameras are secured in position.
5. Re-attach the cover to the camera.
