How to connect to RTSP streams on Contera cameras

Hung Phan
Updated
  1. Click HERE for the API documentation.
  2. You will need to use VLC to open a network stream (Media > Open Network Stream). Download VLC from HERE.

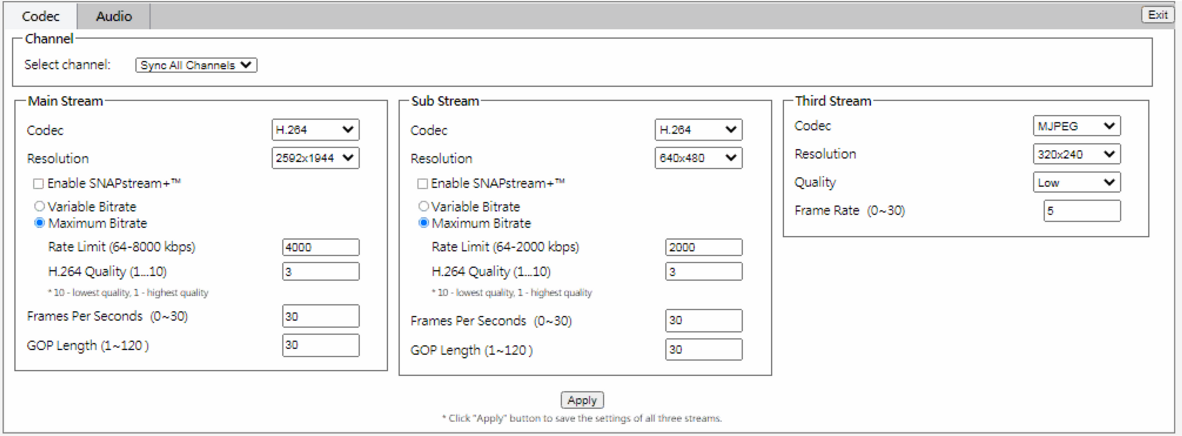

  3. Log in to the camera web page and click Video & Audio. Confirm your stream settings for the Main, Sub Stream, and MJPEG streams are set to what you want.

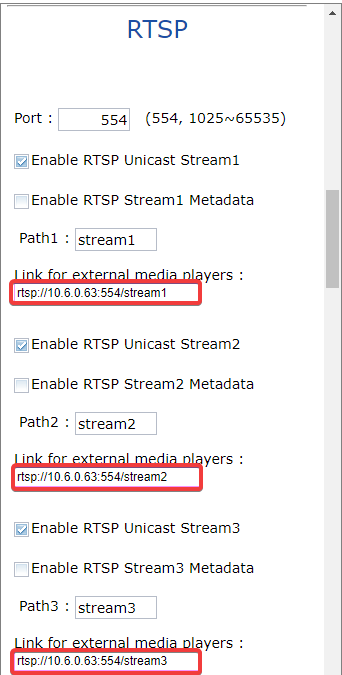

  4. Click the "Network" menu and select the "RTSP" tab menu. What is displayed below is the base string to use. If you want to view another channel append "_X" X being the channel number.


    ConteraIP MicroDome Duo
    Main  Stream:
    rtsp://10.1.10.2:554/stream1_1
    rtsp://10.1.10.2:554/stream1_2
    Sub Stream:
    rtsp://10.1.10.2:554/stream2_1

    rtsp://10.1.10.2:554/stream2_2

    Third Stream (MJPEG)
    rtsp://10.1.10.2:554/stream3_1
    rtsp://10.1.10.2:554/stream3_2



    ConteraIP Omni LX/RS
    Main Stream:
    rtsp://172.18.0.47:554/stream1_1
    rtsp://172.18.0.47:554/stream1_2
    rtsp://172.18.0.47:554/stream1_3
    rtsp://172.18.0.47:554/stream1_4
    Example with authentication:rtsp://admin:Password2020$@172.18.0.47:554/stream1_1

    Sub Stream:
    rtsp://172.18.0.47:554/stream2_1
    rtsp://172.18.0.47:554/stream2_2
    rtsp://172.18.0.47:554/stream2_3
    rtsp://172.18.0.47:554/stream2_4

    MJPEG Stream:
    rtsp://172.18.0.47:554/stream3_1
    rtsp://172.18.0.47:554/stream3_2
    rtsp://172.18.0.47:554/stream3_3
    rtsp://172.18.0.47:554/stream3_4
